Further Information

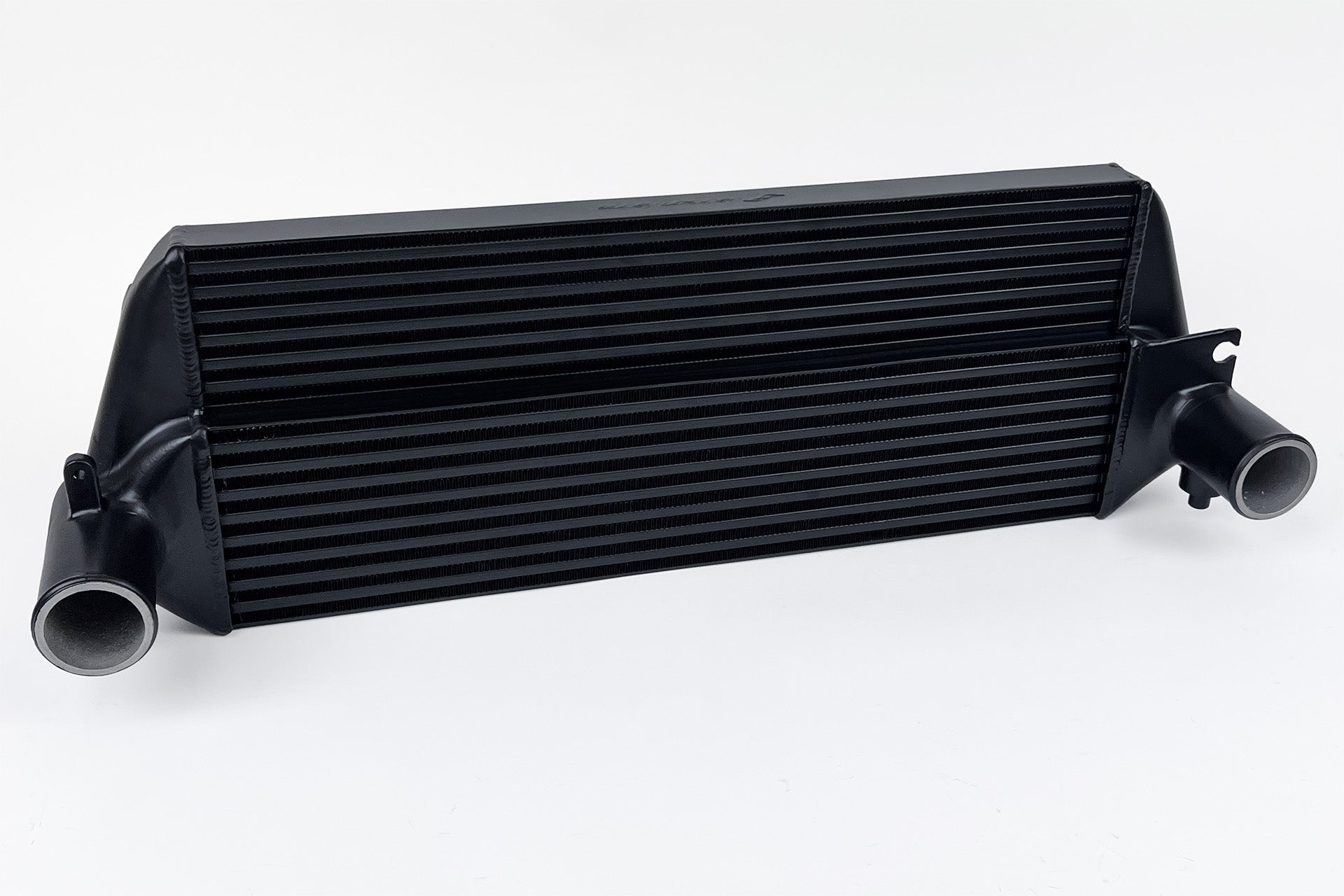

The CSF x Jackson Racing Toyota GR Corolla Stepped-Core Intercooler delivers advanced thermal management engineered through 3D scanning and CFD optimization. Independently tested by Moto IQ and called "The Best Intercooler We've Ever Tested," this unit combines maximum cooling capacity with a compact, factory-compatible design.
Available in stealth Black (#8285B) or OEM Silver (#8285) finishes.
Key Features:

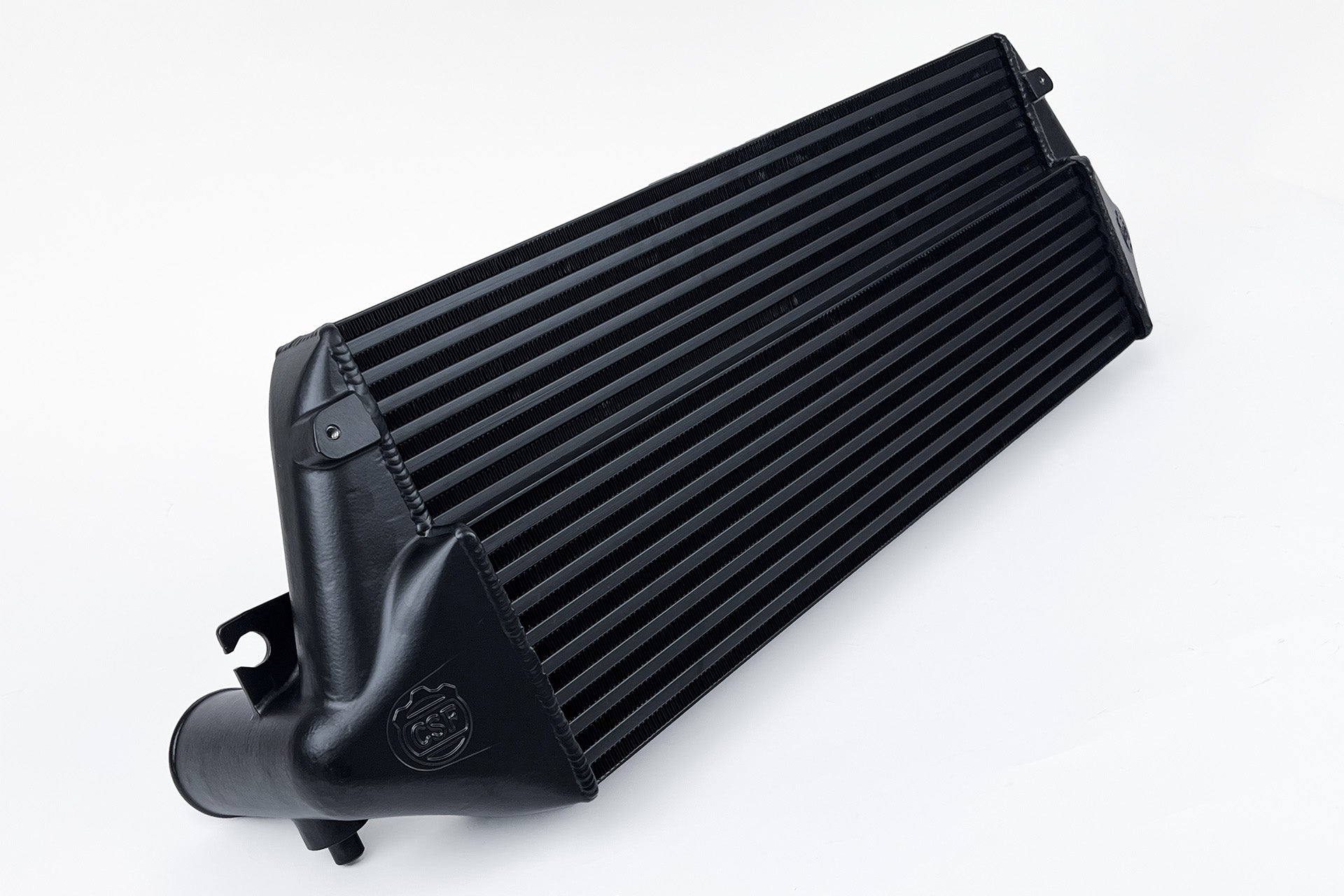

- Stepped-core design maximizes surface area (73% increase) and volume (45% increase) without modification to factory components
- High-Performance Tube & Fin construction for superior cooling efficiency and lighter weight versus bar & plate designs

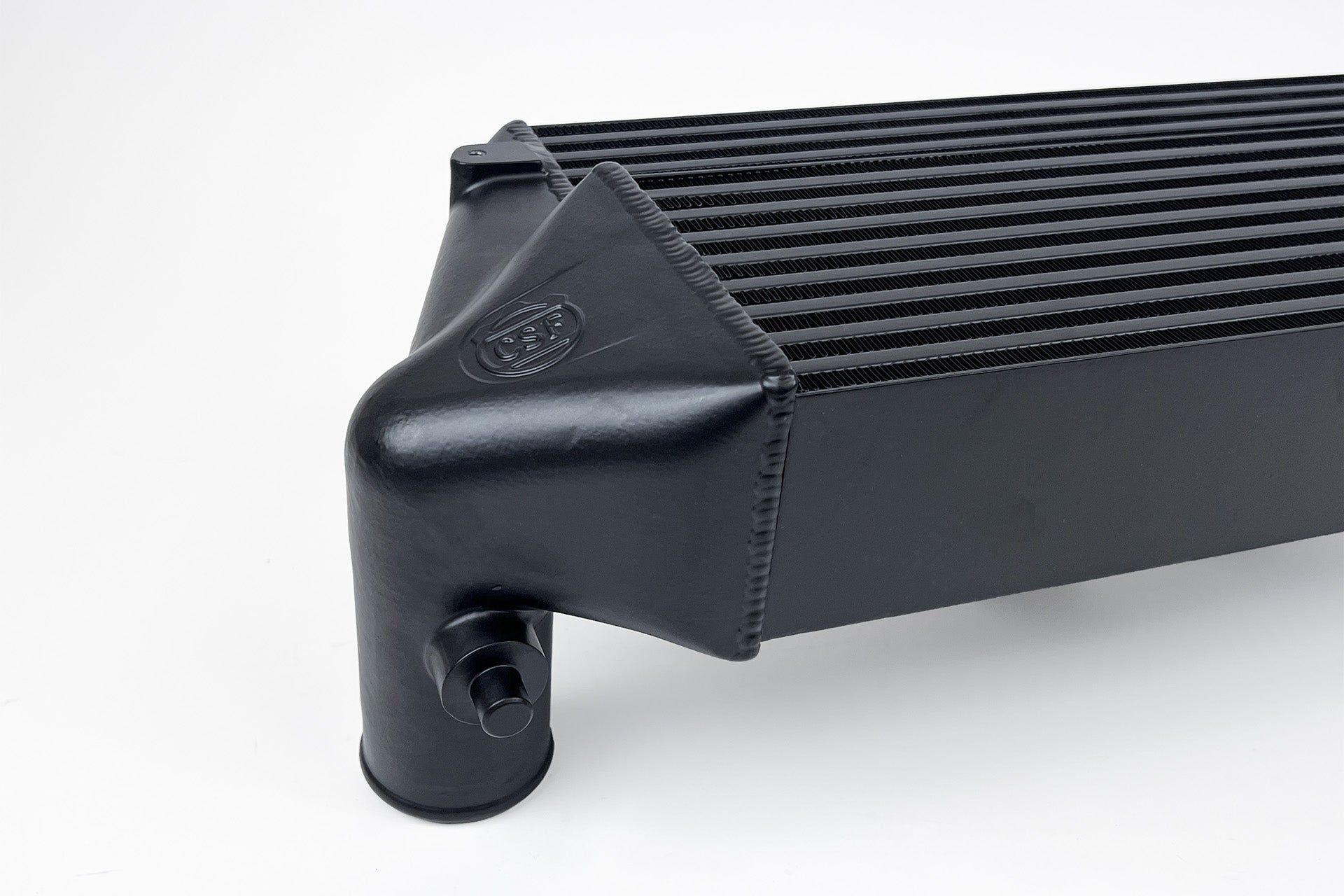

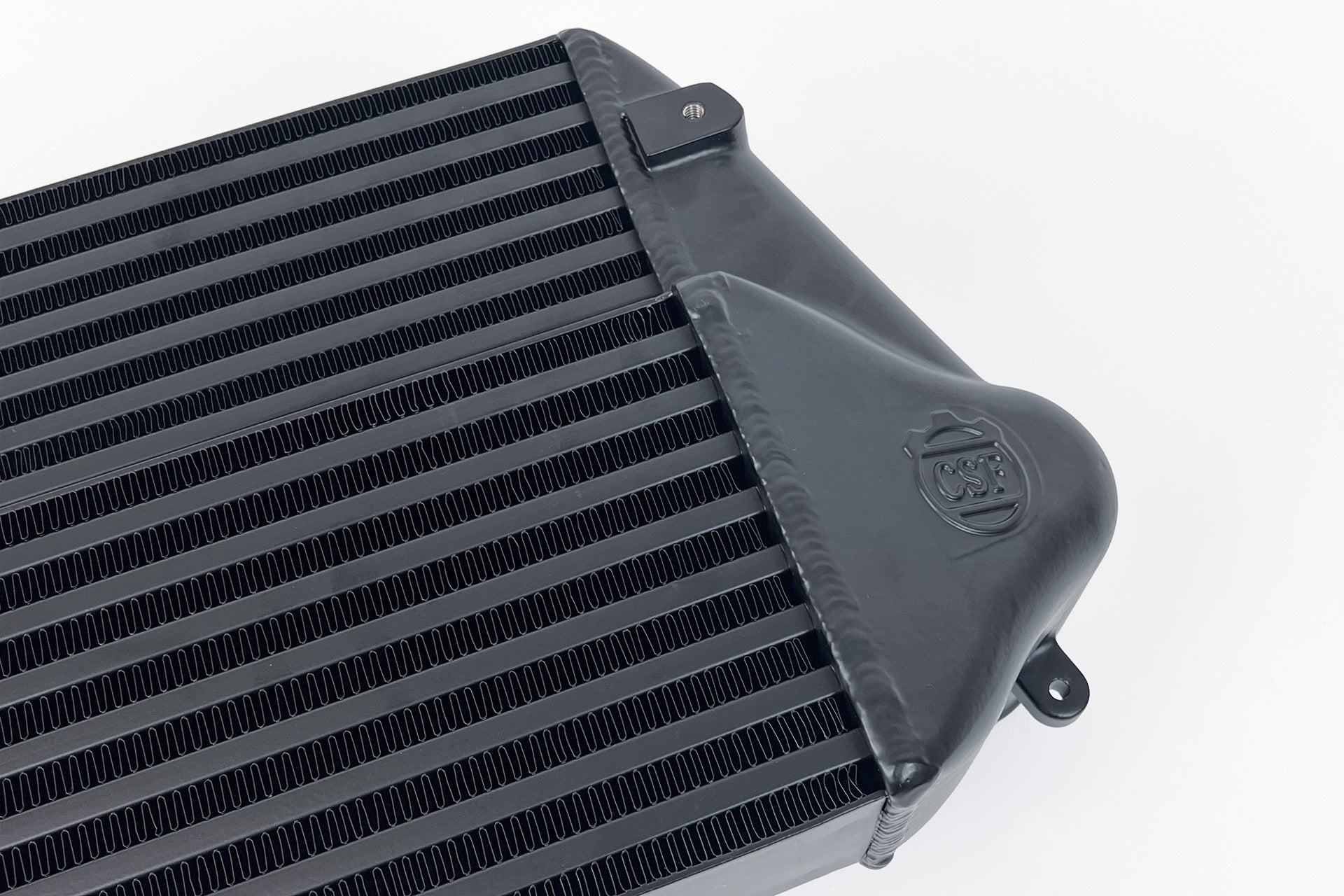

- 100% TIG-welded cast aluminum end tanks provide exceptional durability and strength

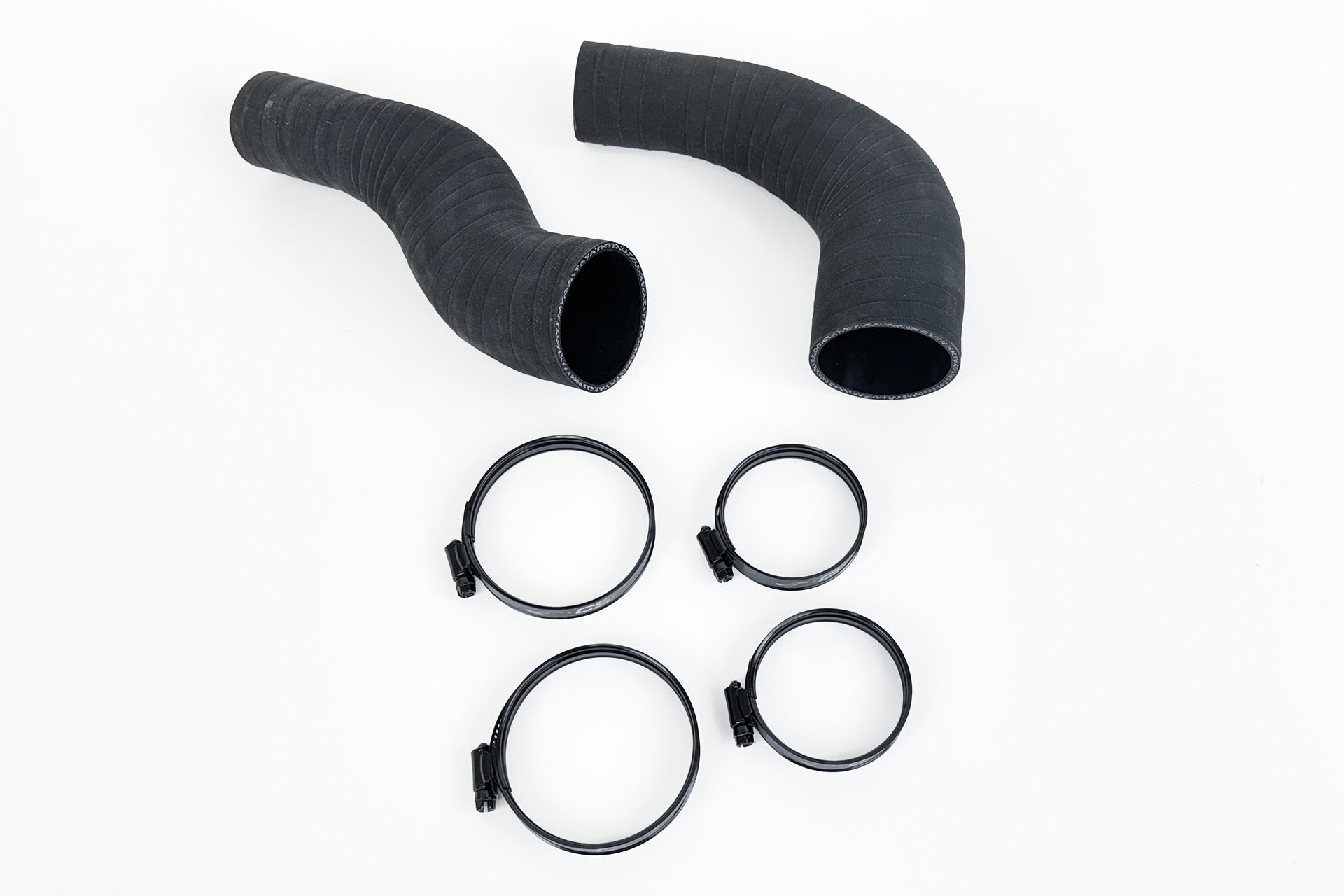

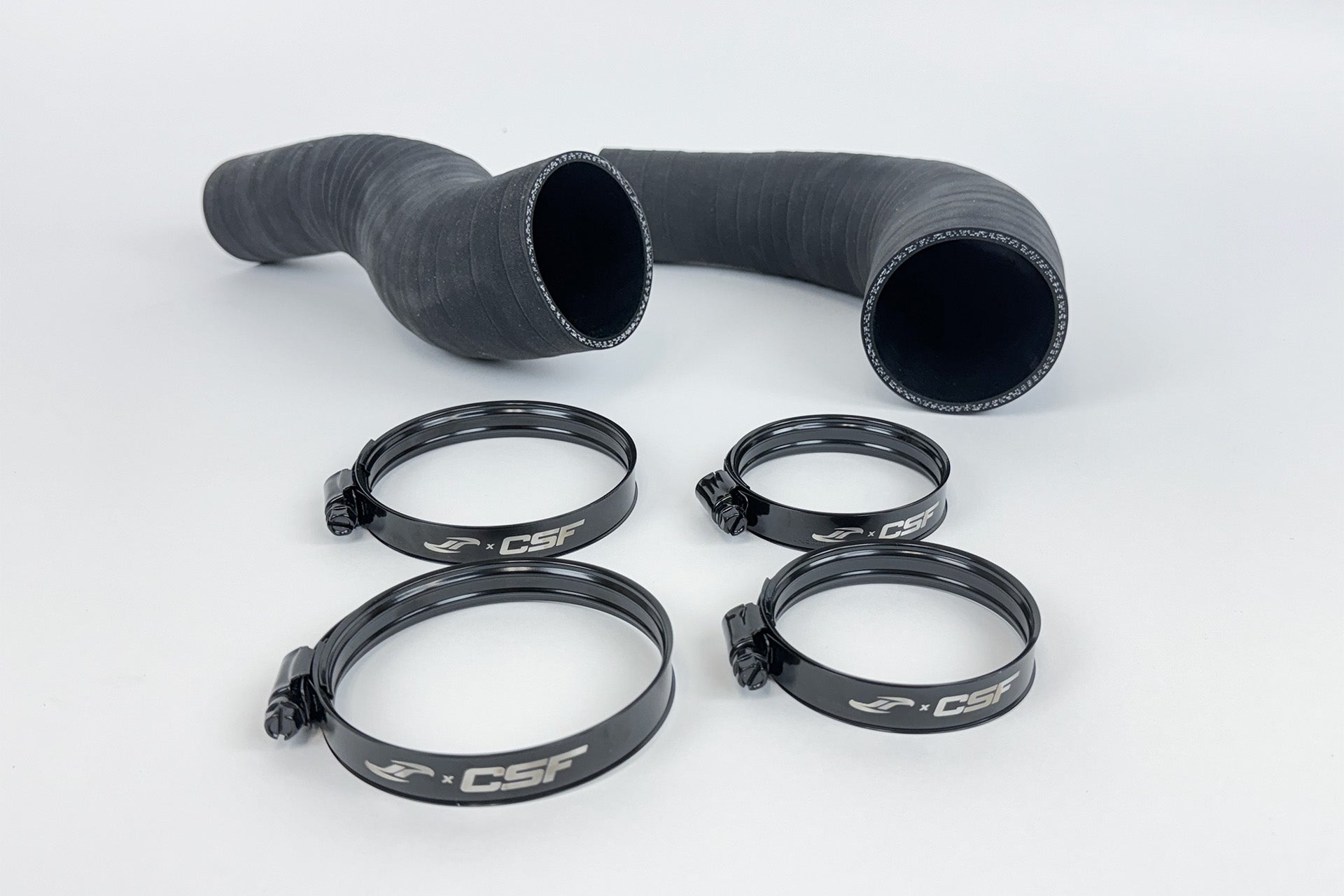

- Motorsport-grade 5-ply silicone hoses and unique bead-lock clamps rated for extreme boost

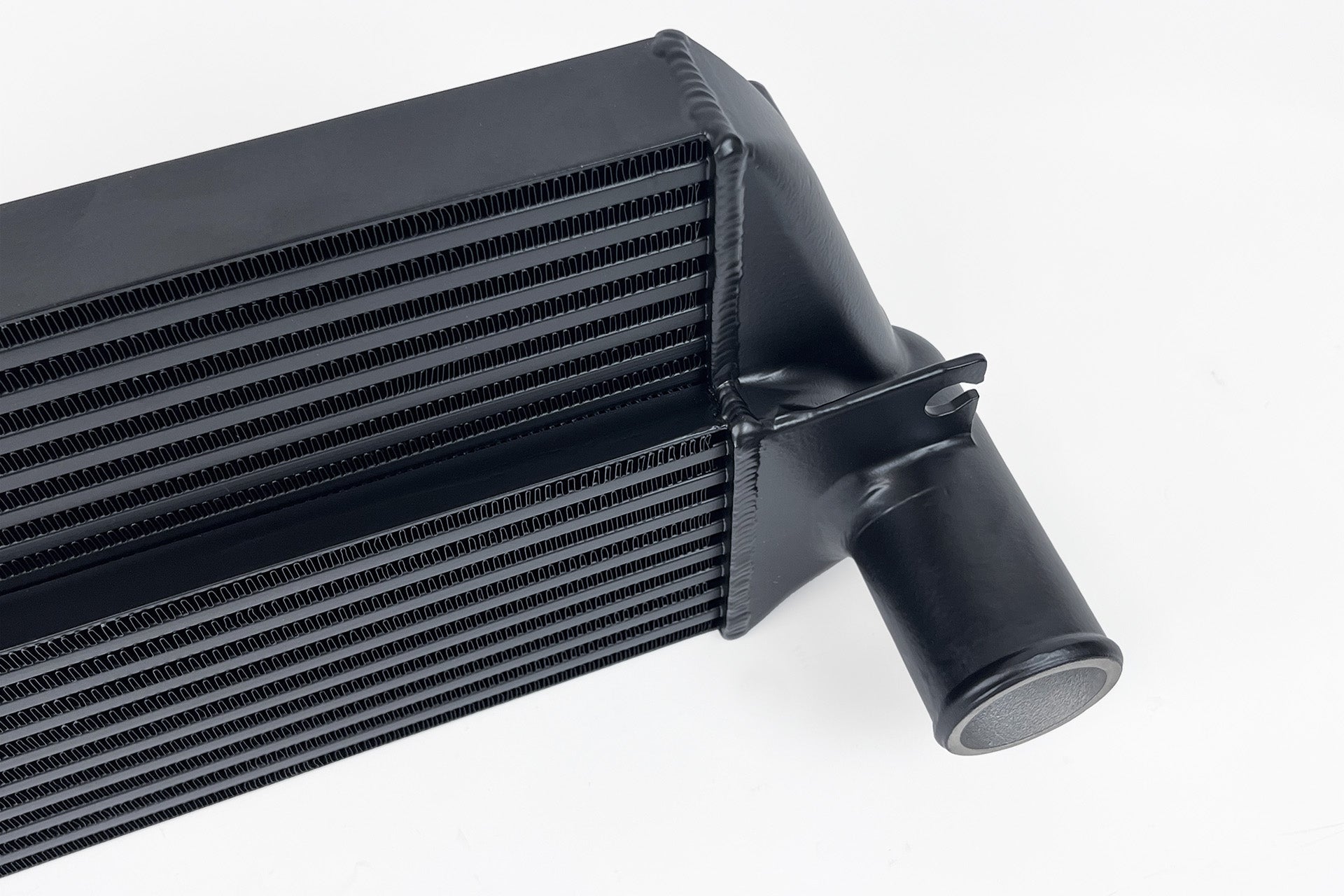

- Enlarged 2.5in (63.5mm) inlet/outlet connections for improved flow over factory 1.85in diameter
- True drop-in fit installation with factory charge pipe compatibility
- Individually leak and pressure tested before shipment
Performance Notes:
- Reduces charge air temperatures by 240°F (90°F improvement over OEM)
- Extends heat soak duration by approximately 2x compared to factory intercooler
- Maintains 60°F cooler charge air temperatures even when heat soaked versus OEM unit

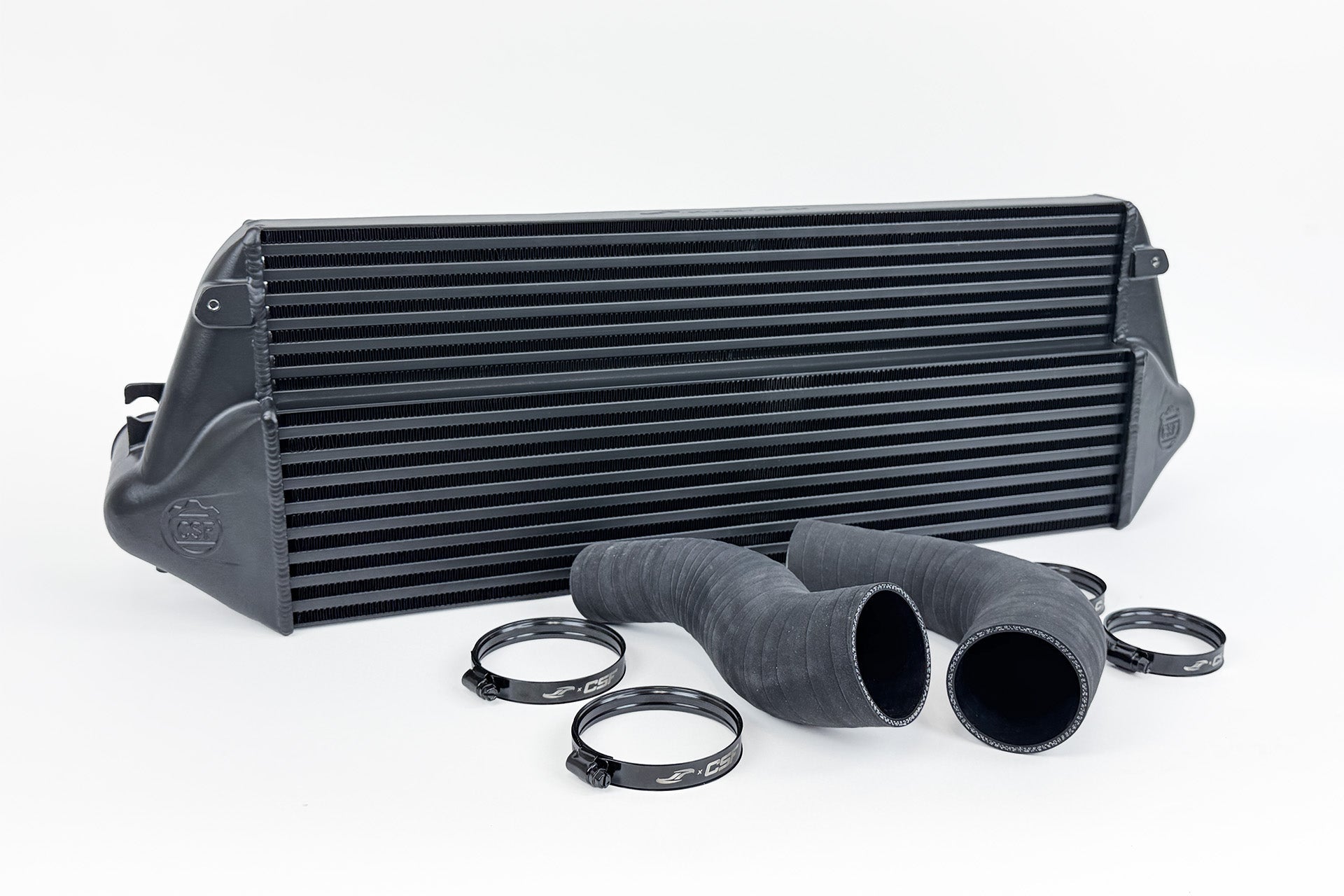

Includes:
- CSF x Jackson Racing stepped-core intercooler with cast aluminum tanks
- Motorsport-grade silicone hoses with matte black finish
- High-boost bead-lock clamp system
- All required installation hardware
- 2-year limited warranty
Advanced cooling. Factory fit. Maximum surface area. Built for the GR Corolla.
