Further Information

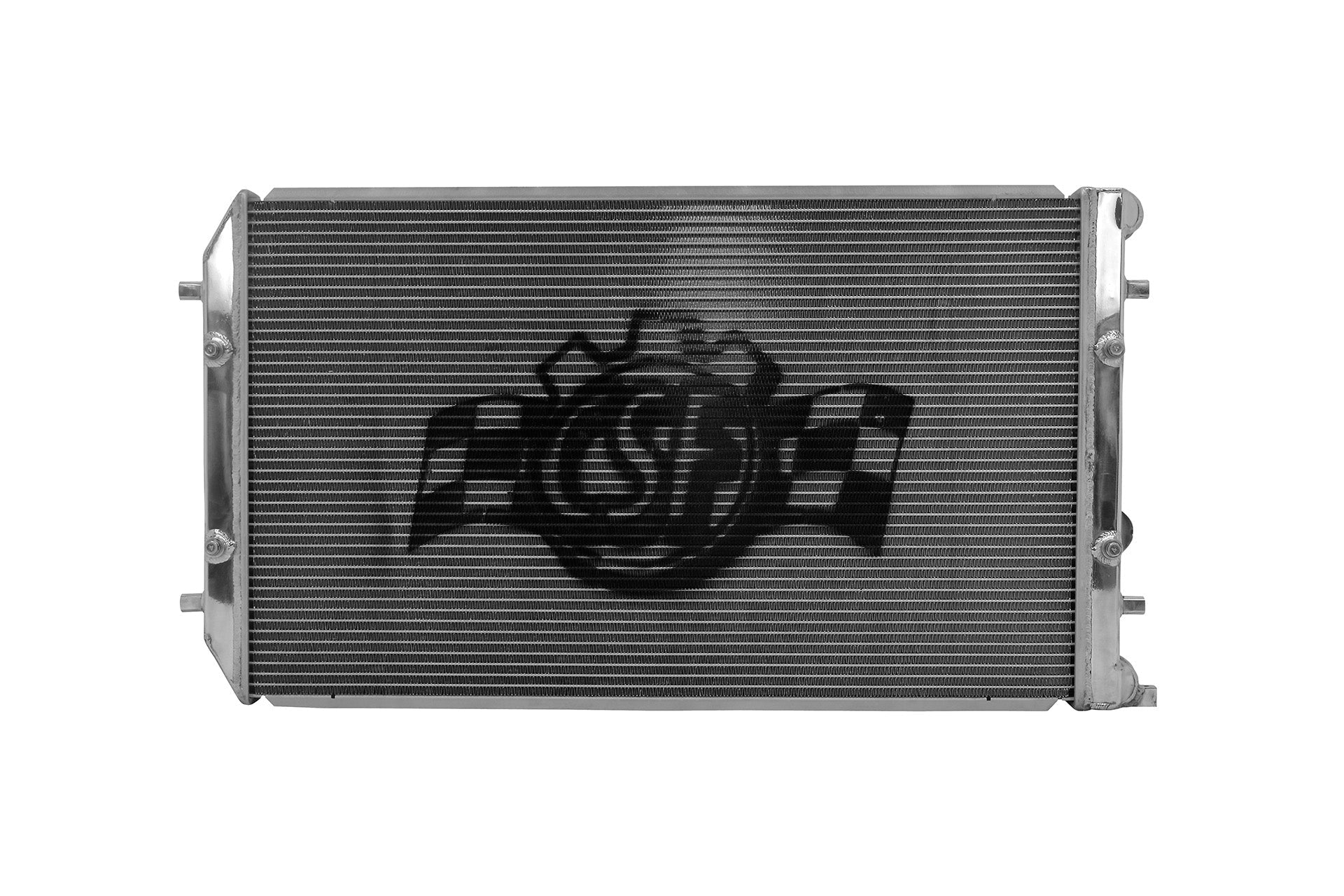

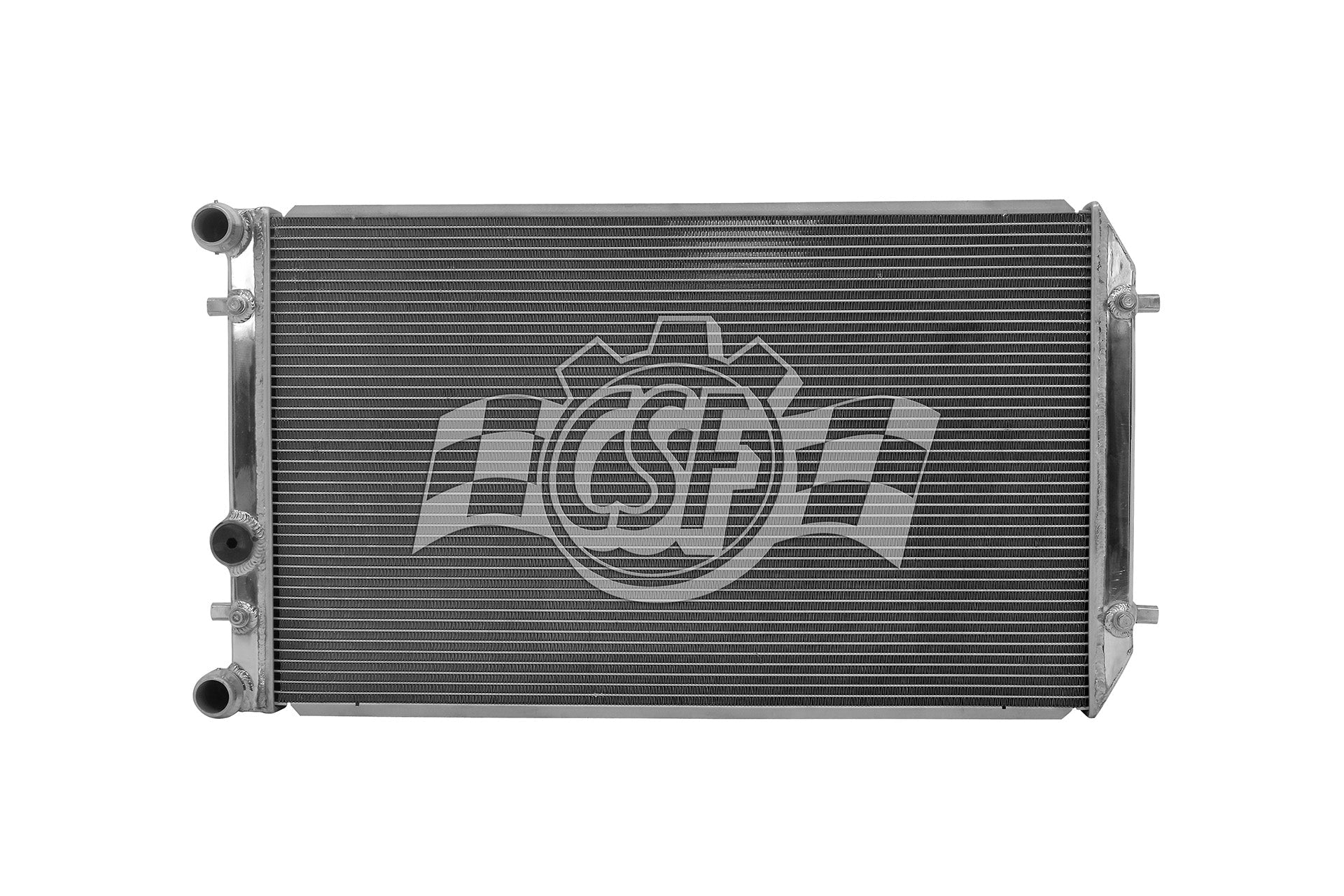

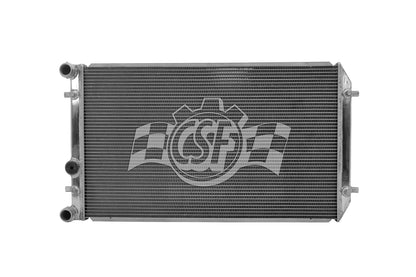

CSF's High-Performance All-Aluminum Radiator for 99-06 VW Golf, GTI, Jetta, and GLI combines decades of cooling expertise with advanced engineering for street and track applications. Designed to handle high horsepower builds and motorsports environments, this radiator delivers superior thermal performance without compromise.

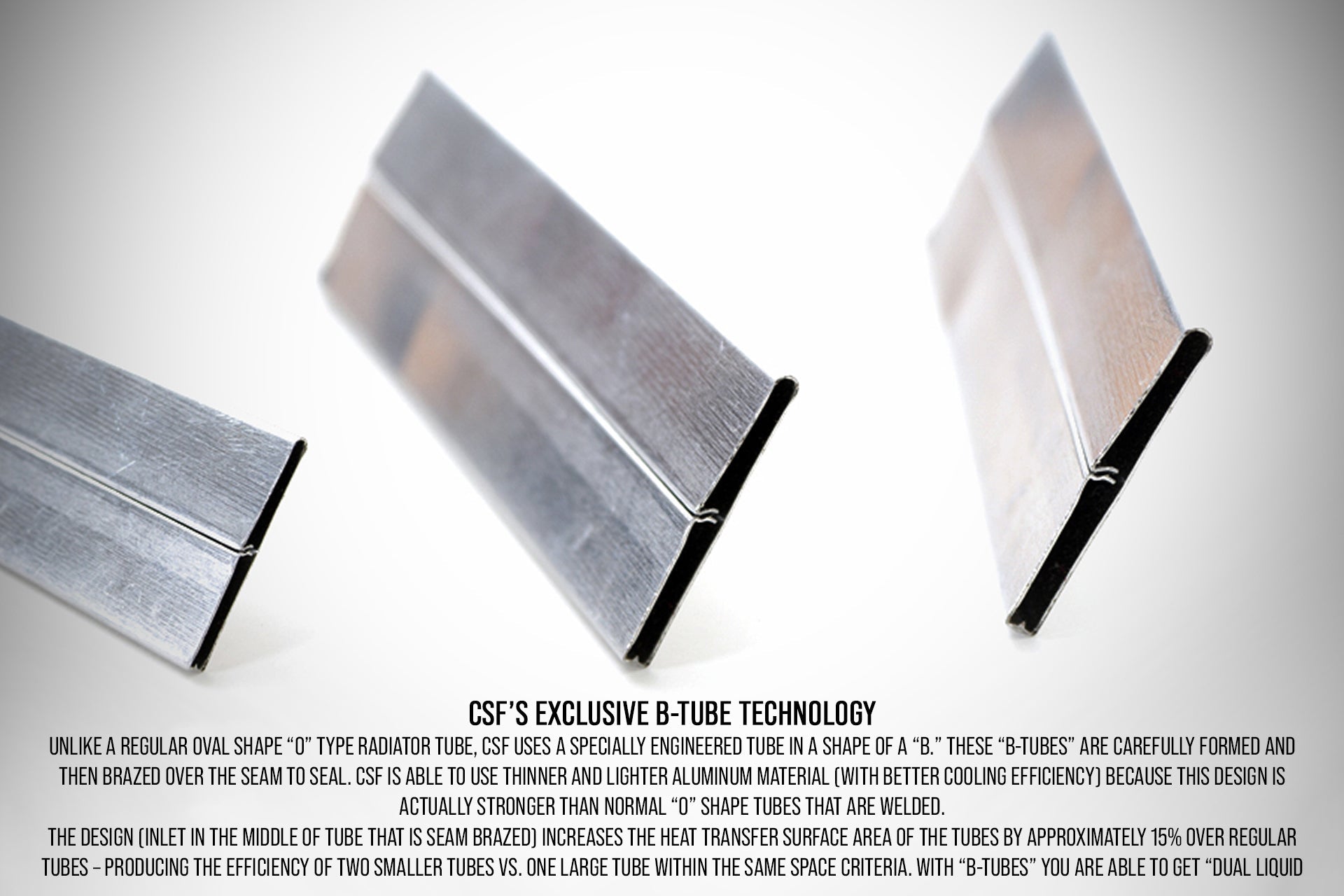

The 2-Row 42mm core features CSF's proprietary B-Tube Technology, which uses specially engineered tube geometry that increases heat transfer surface area by approximately 15% compared to conventional O-shaped tubes. These B-tubes are brazed over the seam for superior strength while allowing the use of thinner, lighter aluminum materials. Multi-louvered fins with 6.5mm fin height are precisely aligned and wind-tunnel tested to maximize airflow and heat rejection efficiency.
Key Features:
- 2-Row 42mm dual core with exclusive B-Tube Technology
- Dual liquid laminar flow design for enhanced cooling efficiency

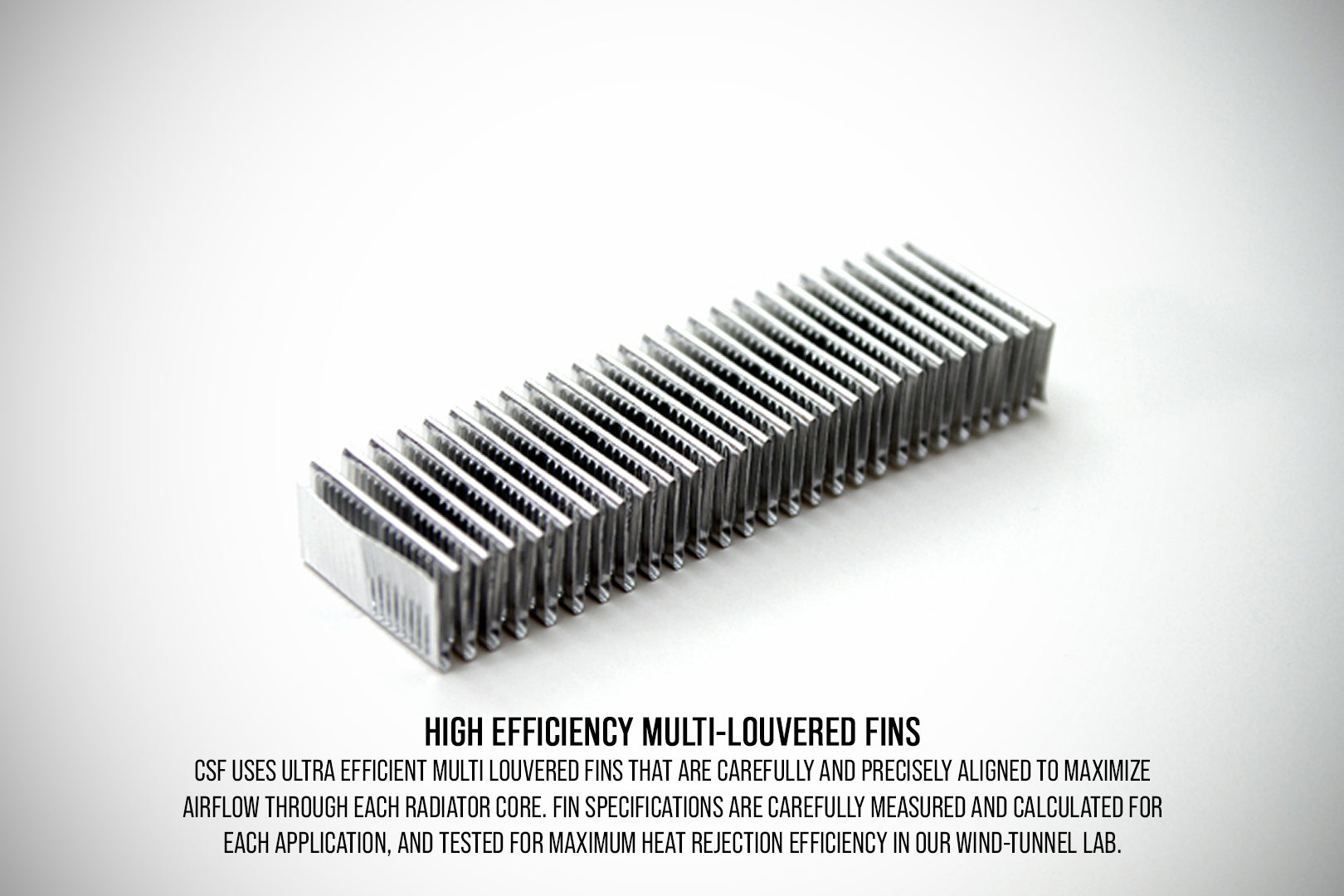

- Ultra-efficient multi-louvered fins with 6.5mm height for maximum surface area
- CNC machined quick-connect inlet/outlet connections
- CNC machined brackets and fittings for superior fit and durability
- All-aluminum race-style drain plug with smooth satin finish
- Drop-in fit design accepting all OEM components including quick-connect hoses and fan shroud
- Compatible with OE or aftermarket hose connections
Includes:
- High-performance all-aluminum radiator core
- CNC machined OE-style mounting brackets
- Quick-connect inlet/outlet fittings
- Race-style aluminum drain plug
- 2-year warranty coverage
Cool engineering meets proven performance. CSF Race Radiator for MK4 VW.
