Further Information

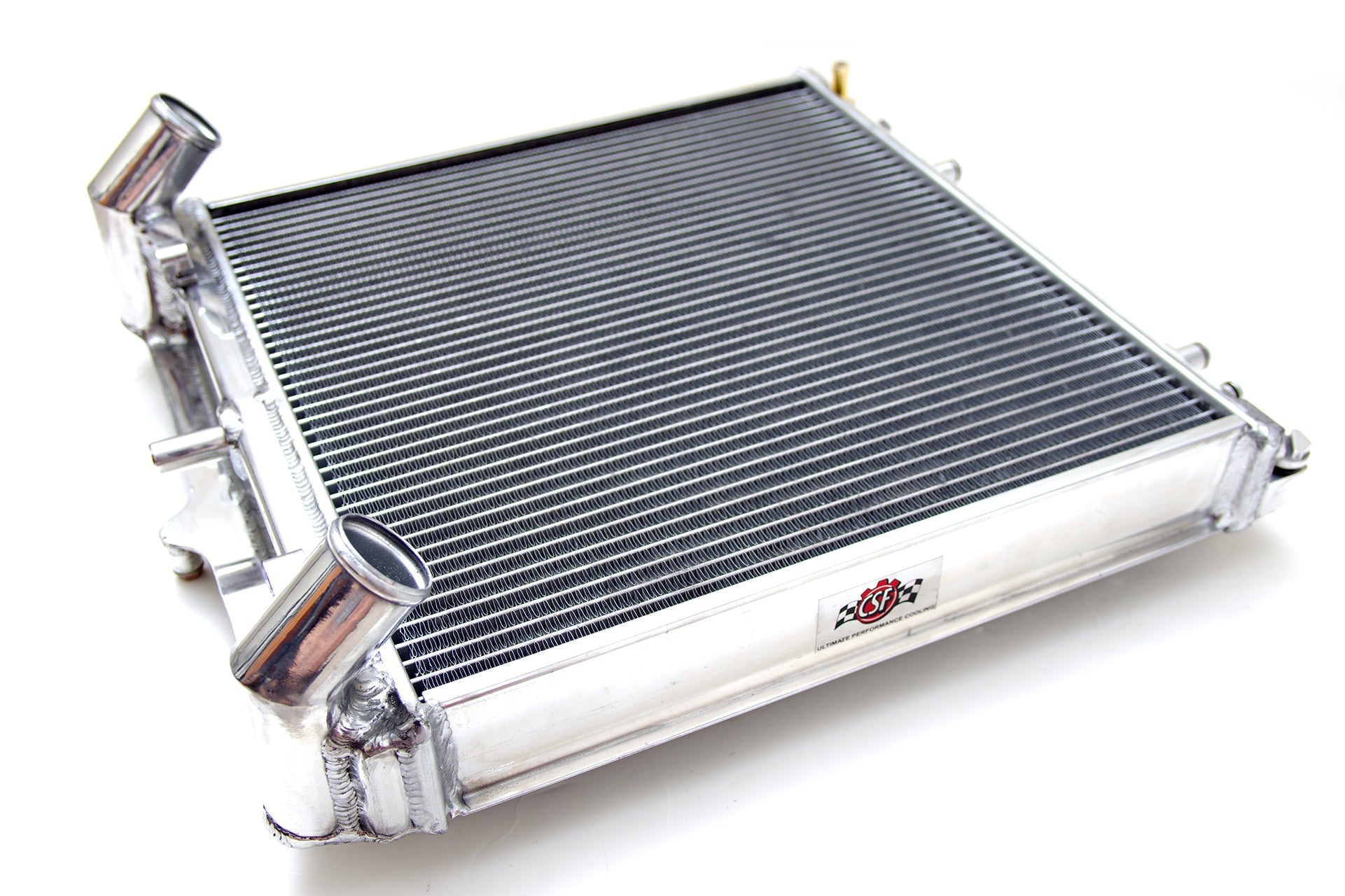

CSF brings over five decades of cooling expertise to the Porsche 996 911/986 Boxster platform with this high-performance all-aluminum radiator. Designed for both street and track environments, this radiator delivers the added cooling performance necessary for high horsepower builds and motorsports applications.

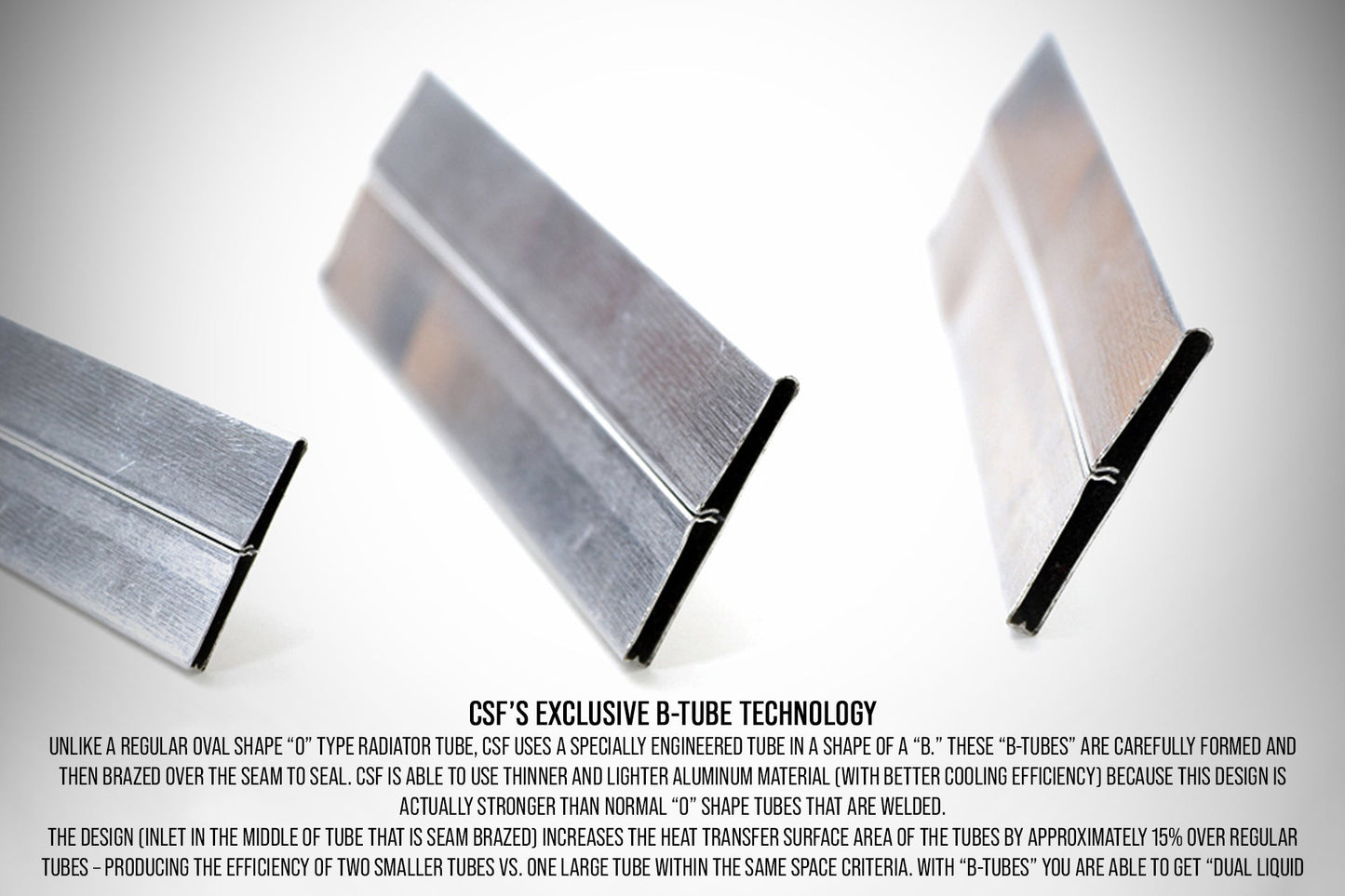

This radiator features a 2-Row 42mm core built with CSF's exclusive B-Tube Technology, which uses specially engineered tubes brazed over the seam rather than welded. This design increases heat transfer surface area by approximately 15% while using thinner, lighter aluminum for superior strength and efficiency. Combined with ultra-efficient multi-louvered fins precisely aligned to maximize airflow, the result is dual liquid laminar flow and exceptional thermal performance validated in CSF's wind-tunnel lab.
Key Features:
- 2-Row 42mm core featuring CSF's exclusive B-Tube Technology (+20% efficiency)

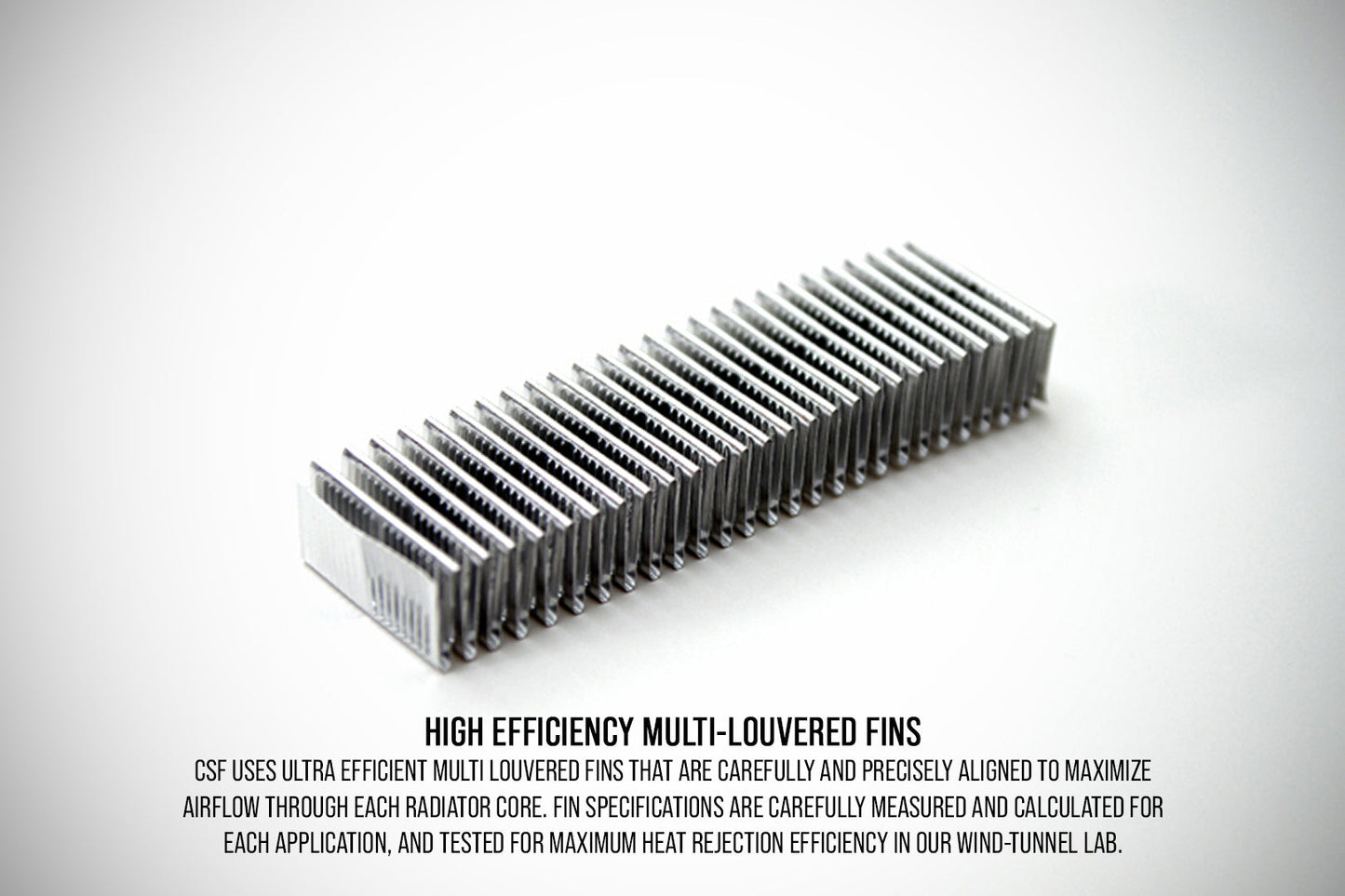

- 6.5mm fin height with multi-louvered design for maximum surface area
- All-aluminum construction with 100% TIG-welded end tanks
- CNC machined brackets and fittings for superior fit and durability
- OEM-style machined inlet/outlet connections compatible with OEM hoses
- Individually leak and pressure tested
- Drop-in fit design with no modifications required
- Accepts OEM AC condenser and fan shroud
Includes:
- All-aluminum radiator assembly
- CNC machined OEM-style brackets
- OEM-compatible inlet/outlet connections
Maximum cooling performance meets proven reliability. Built for the 996 and 986 Porsche lineup.
| Manufacturer | Model | Years | Generations | Variant | Engine Code(s) |
|---|---|---|---|---|---|
| Jaguar | F-type | 2017, 2018 | F-type Convertible (facelift 2017) | F-type Convertible (facelift 2017)-3.0 V6 (340 Hp) | 306PS |
