Further Information

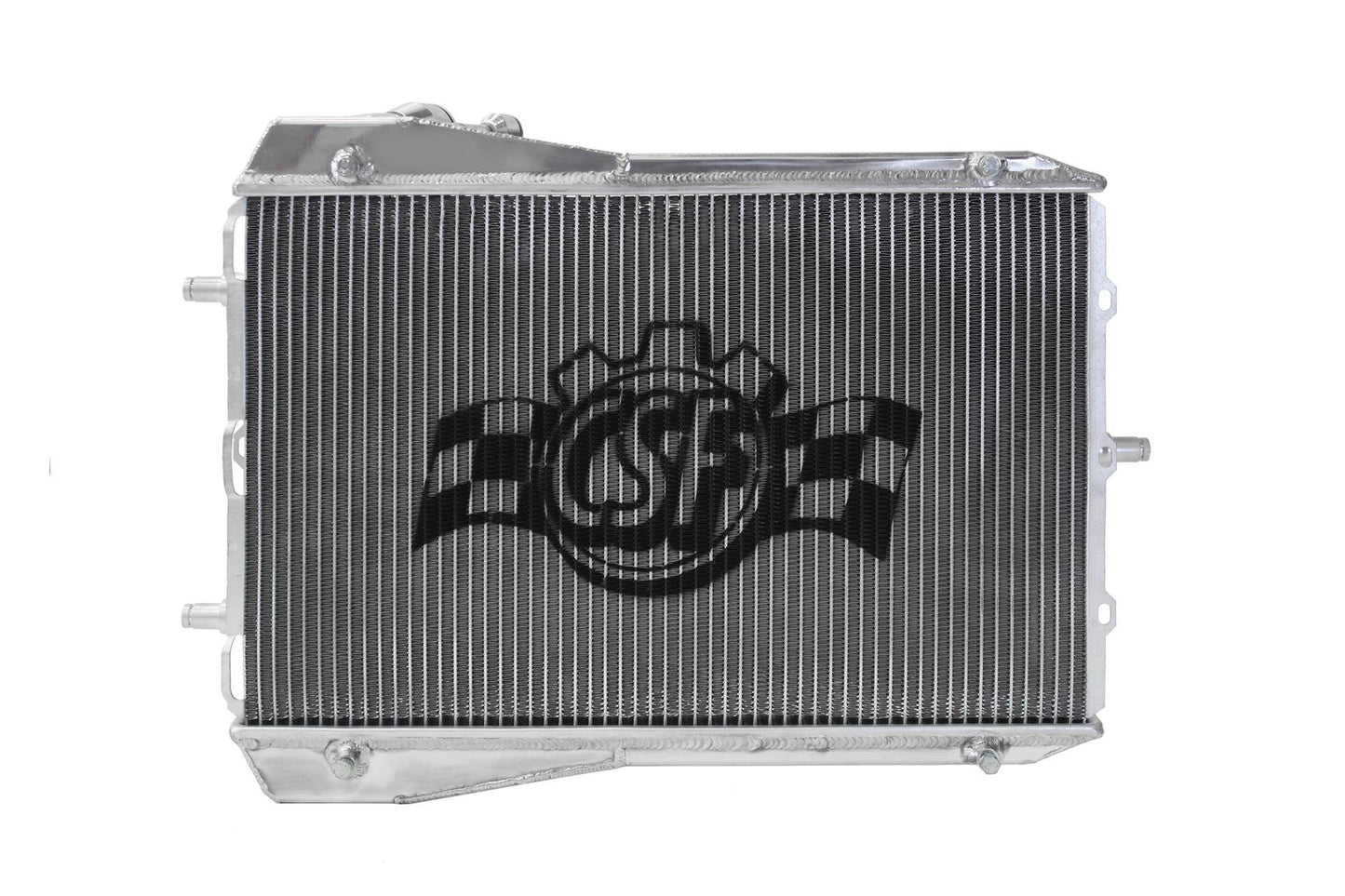

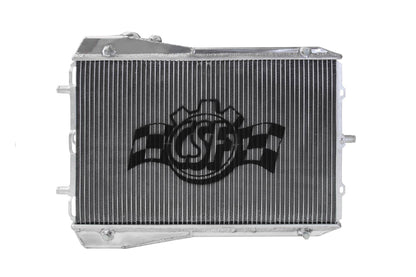

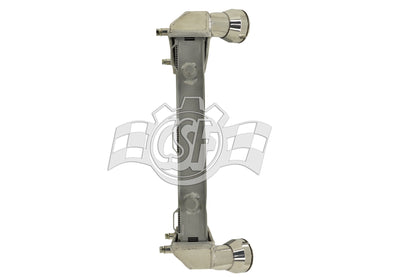

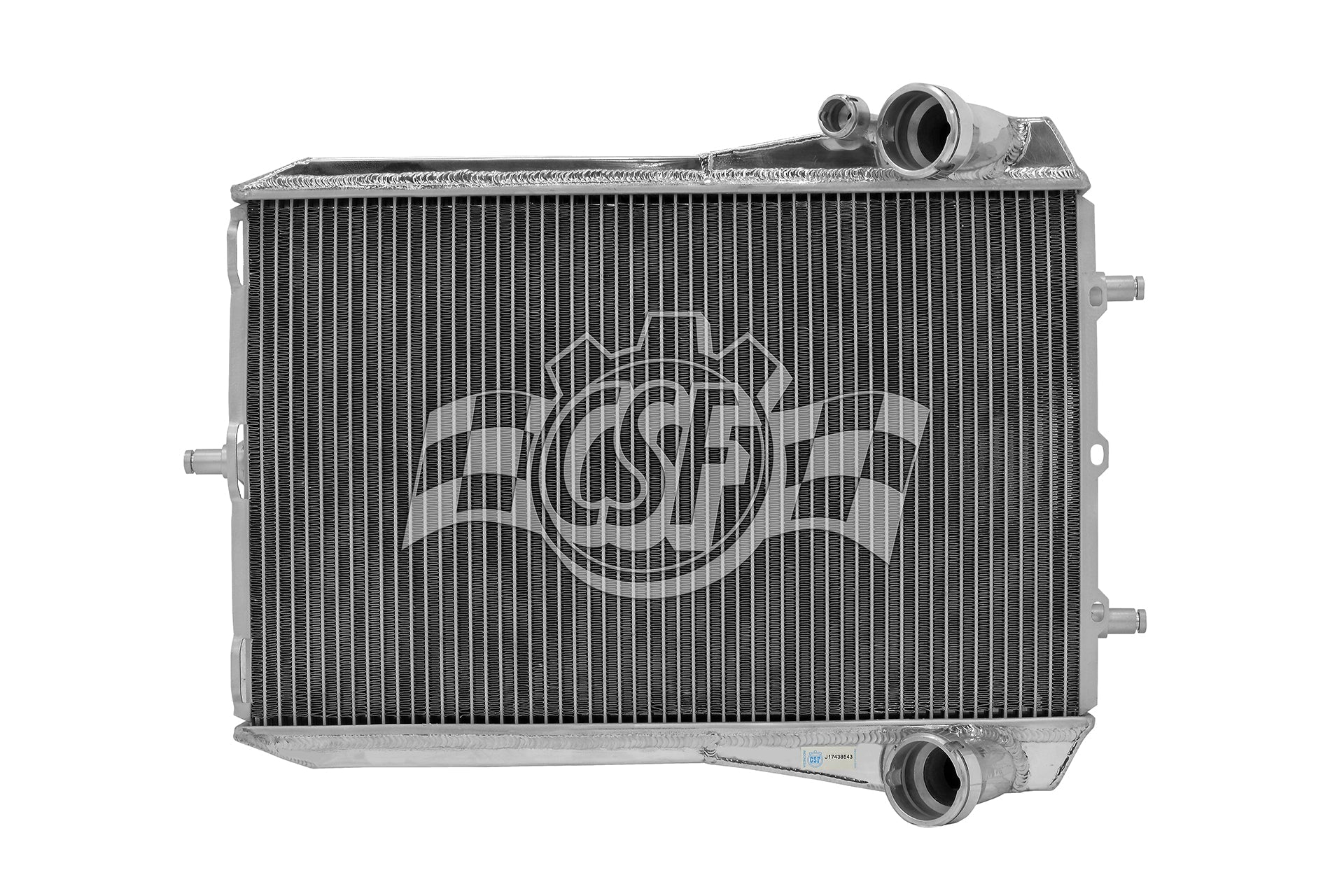

CSF brings over five decades of cooling expertise to the 996/997 Turbo and GT2 platform with this high-performance all-aluminum radiator. Engineered for both street and track applications, this radiator delivers superior thermal management for high-horsepower builds and race vehicles demanding enhanced cooling in demanding motorsports environments.

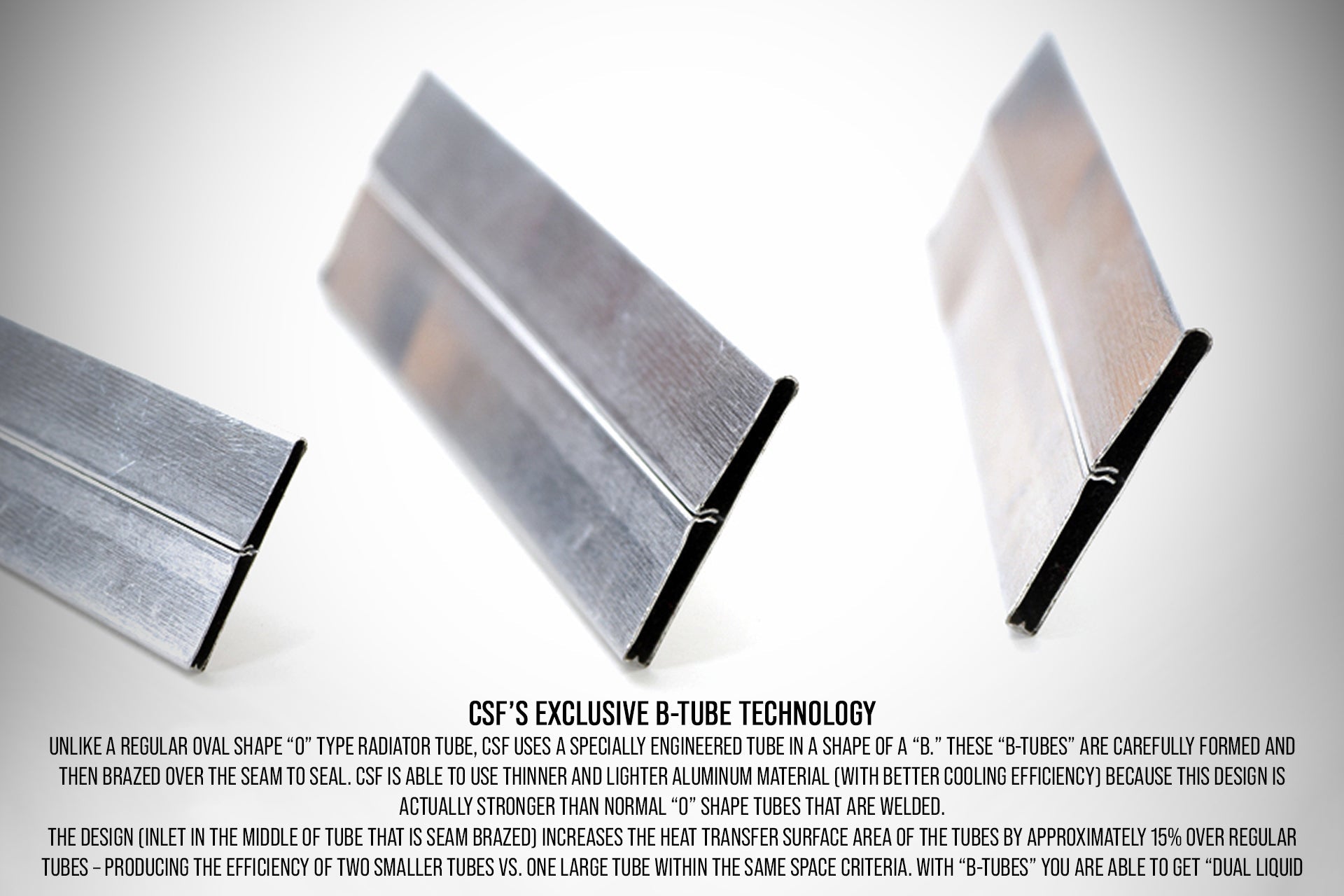

The radiator features CSF's proprietary B-Tube Technology, where specially engineered tubes are precisely formed and seam-brazed rather than welded. This design increases heat transfer surface area by approximately 15% compared to conventional oval tubes, delivering dual liquid laminar flow efficiency within the same footprint while using thinner, lighter aluminum for improved reliability.
Key Features:
- 2-Row 42mm core with exclusive B-Tube Technology (+20% efficiency gain)

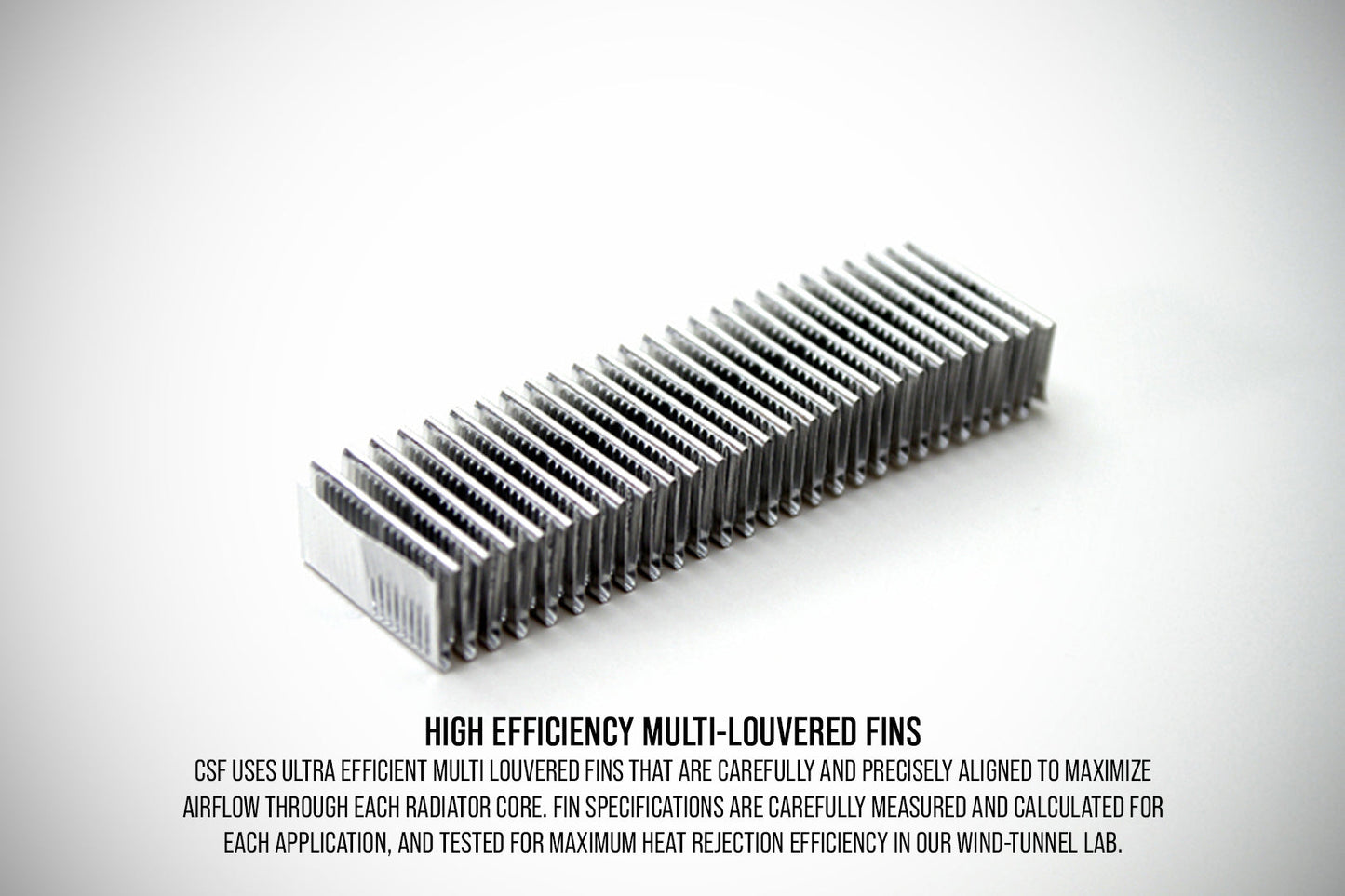

- 6.5mm fin height with multi-louvered design for maximum surface area and airflow
- All-aluminum construction with 100% TIG-welded end tanks
- CNC machined brackets and fittings for superior fit and durability
- OEM-style machined inlet/outlet connections compatible with OEM hoses or aftermarket alternatives
- Individually leak and pressure tested for reliability
- Drop-in fit design with no installation modifications required
- Accepts OEM AC condenser and fan shroud
- Smooth satin finish
Includes:
- Complete all-aluminum radiator assembly
- CNC machined OEM-style brackets
- OEM-compatible inlet/outlet connections
High-performance cooling engineered for 996/997 Turbo, GT2, and GT2 RS models. Track-proven reliability. Street-proven results.
