Further Information

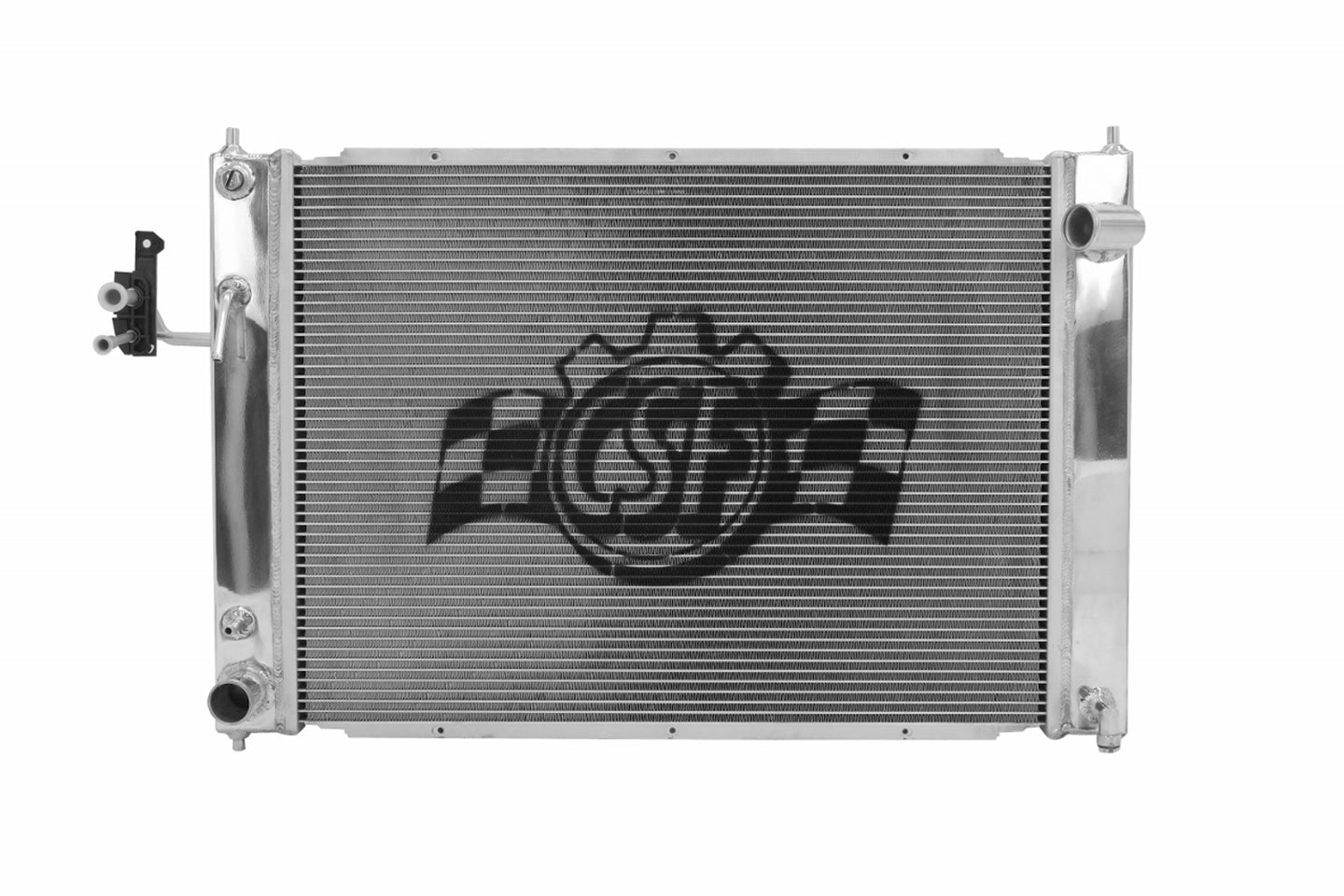

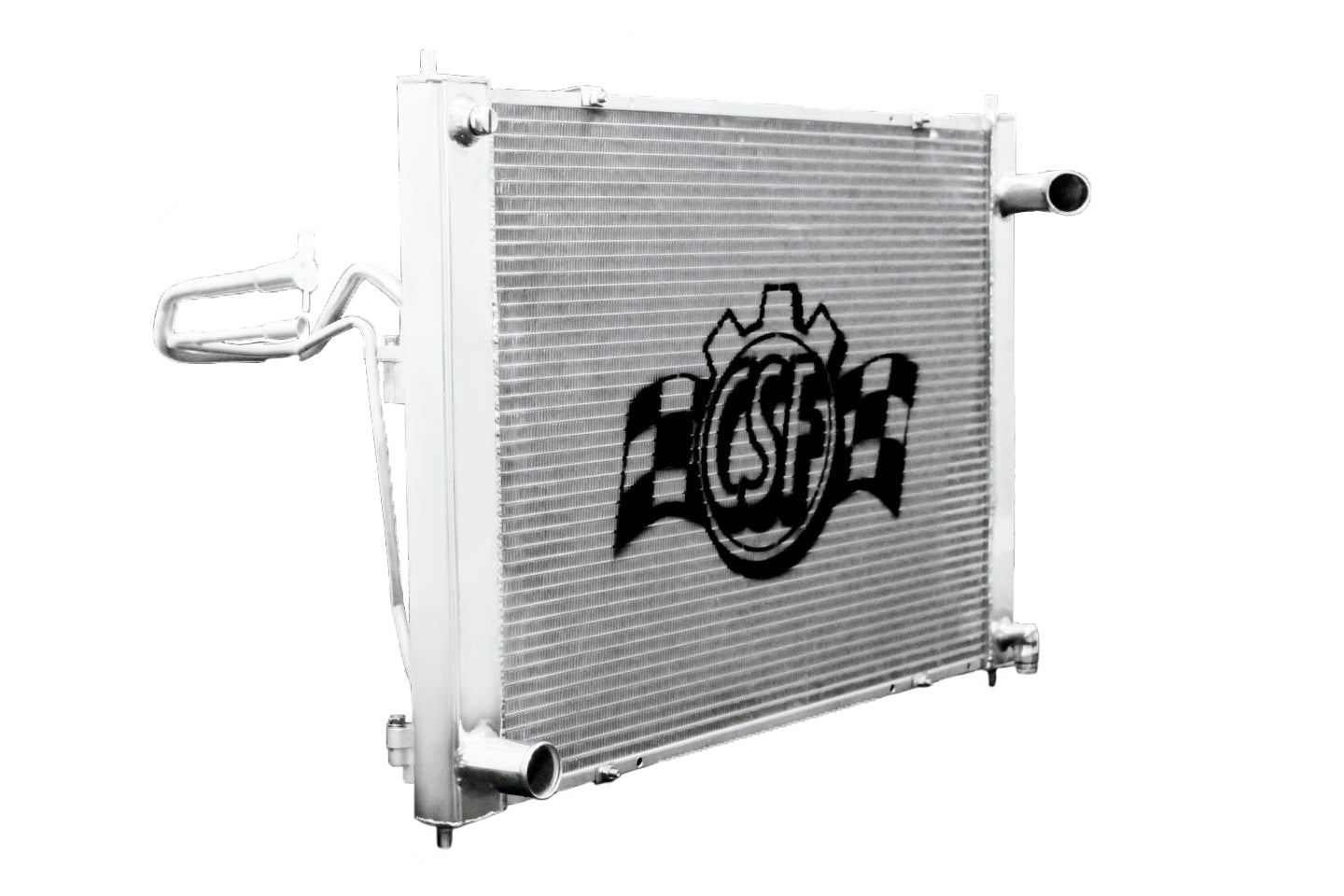

CSF's High-Performance All-Aluminum Radiator for the 370Z and G37 (AT) combines over 5 decades of cooling expertise with advanced engineering for superior thermal management. Designed to perform equally well on the street or at the track, this radiator is ideal for high-horsepower builds and motorsports applications demanding added cooling capacity.

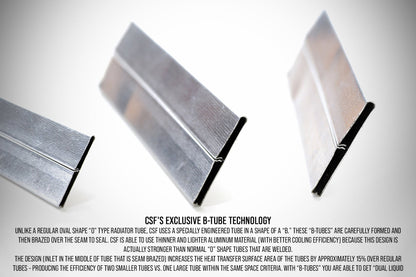

The radiator features CSF's exclusive B-Tube Technology, which uses specially engineered tubes brazed over the seam for superior strength compared to traditional welded O-tube designs. This allows CSF to use thinner, lighter aluminum while increasing heat transfer surface area by approximately 15%, delivering dual liquid laminar flow within the same space constraints.
Key Features:
- 2-Row 42mm core with exclusive B-Tube Technology for enhanced cooling efficiency
- Ultra-efficient multi-louvered fins with 6.5mm fin height precisely aligned for maximum airflow
- CNC machined "Quick-Connect" inlet/outlet connections match OE specifications
- Drop-in fit requiring no modifications; accepts all OEM components including hoses, AC condenser, and fan shroud
- All-aluminum construction with race-style drain plug and smooth satin finish
- CNC machined brackets and fittings for exceptional durability and fit
Includes:
- All-aluminum radiator assembly
- OE-style CNC machined mounting brackets
- Race-style aluminum drain plug
Advanced cooling meets proven reliability. CSF performance for your 370Z and G37.
