Further Information

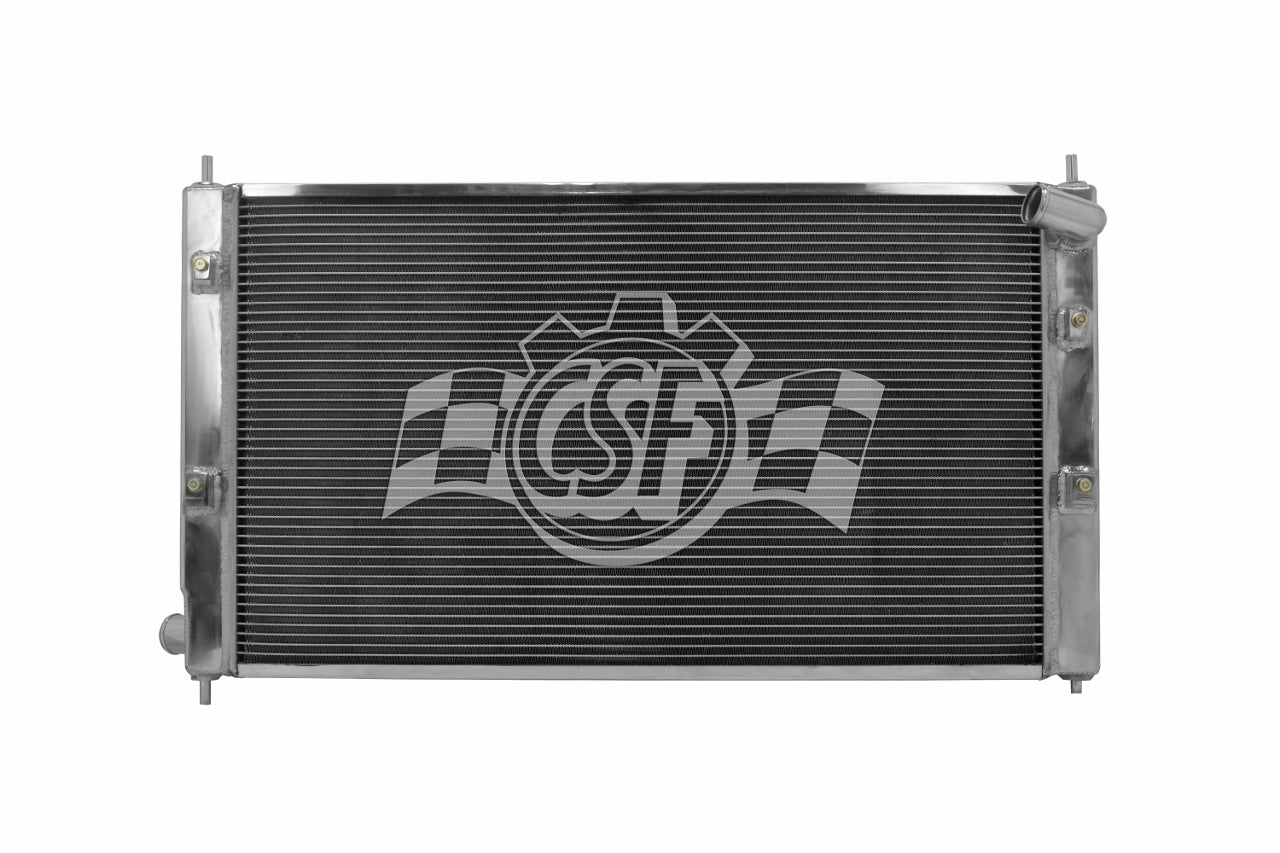

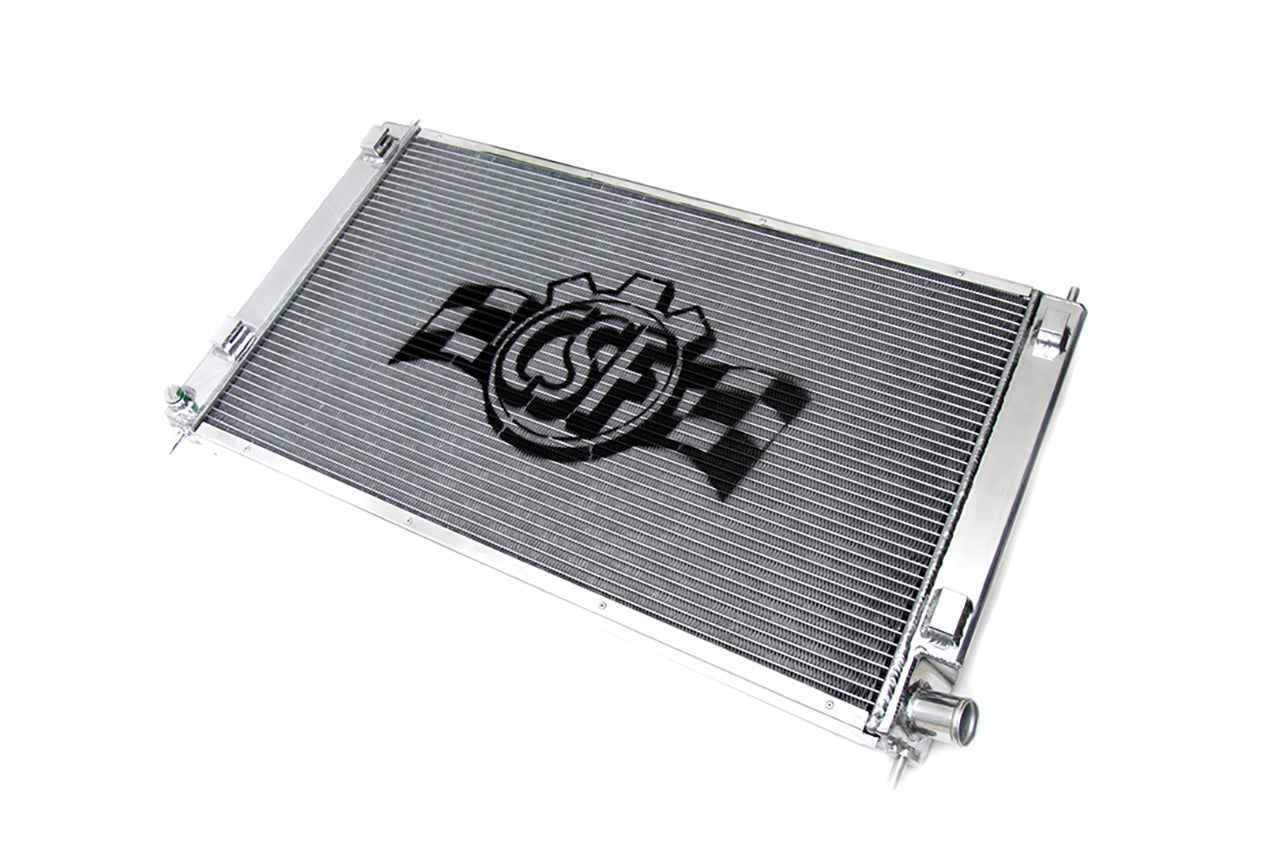

CSF brings over 5 decades of radiator manufacturing expertise to the 08-13 Mitsubishi Lancer Evo X and Ralliart. This high-performance all-aluminum radiator is engineered for both street and track use, delivering superior cooling for stock and heavily modified engines alike.
The radiator features CSF's proprietary B-Tube Technology—a specially engineered tube design that is brazed rather than welded, offering approximately 15% more heat transfer surface area than conventional O-tube designs. The thinner aluminum material and dual liquid laminar flow deliver enhanced cooling efficiency within the same physical footprint.
Key Features:
- 2-Row 42mm dual core with exclusive B-Tube Technology
- Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum surface area

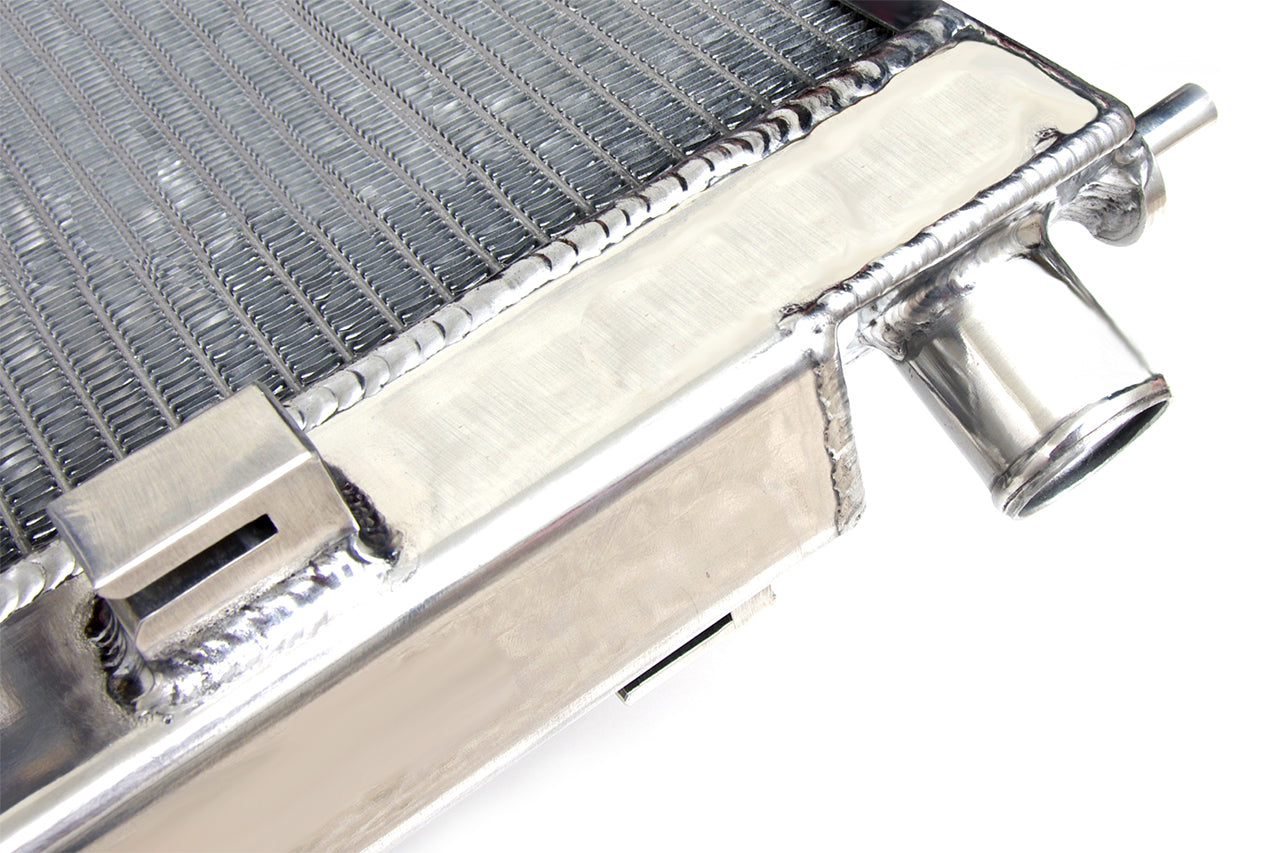

- CNC machined quick-connect inlet/outlet connections matching OE design
- All-aluminum race-style drain plug with smooth satin finish
- Drop-in fit design—no modifications required, accepts all OEM components

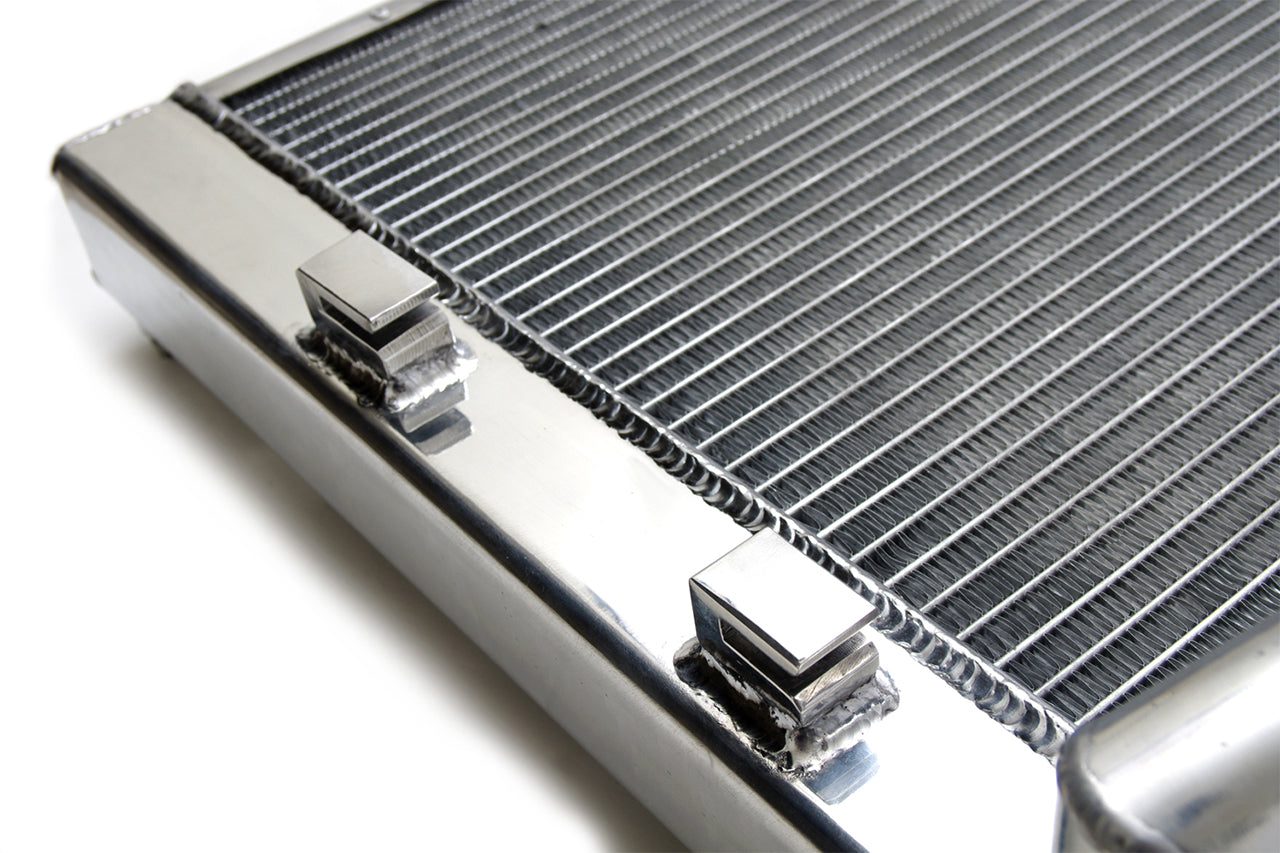

- CNC machined brackets and fittings for superior durability and alignment
Includes:
- Complete radiator assembly
- CNC machined OE-style mounting brackets
- All required fittings and quick-connect components
Maximum cooling performance for your Evo X. Built to last.
