Further Information

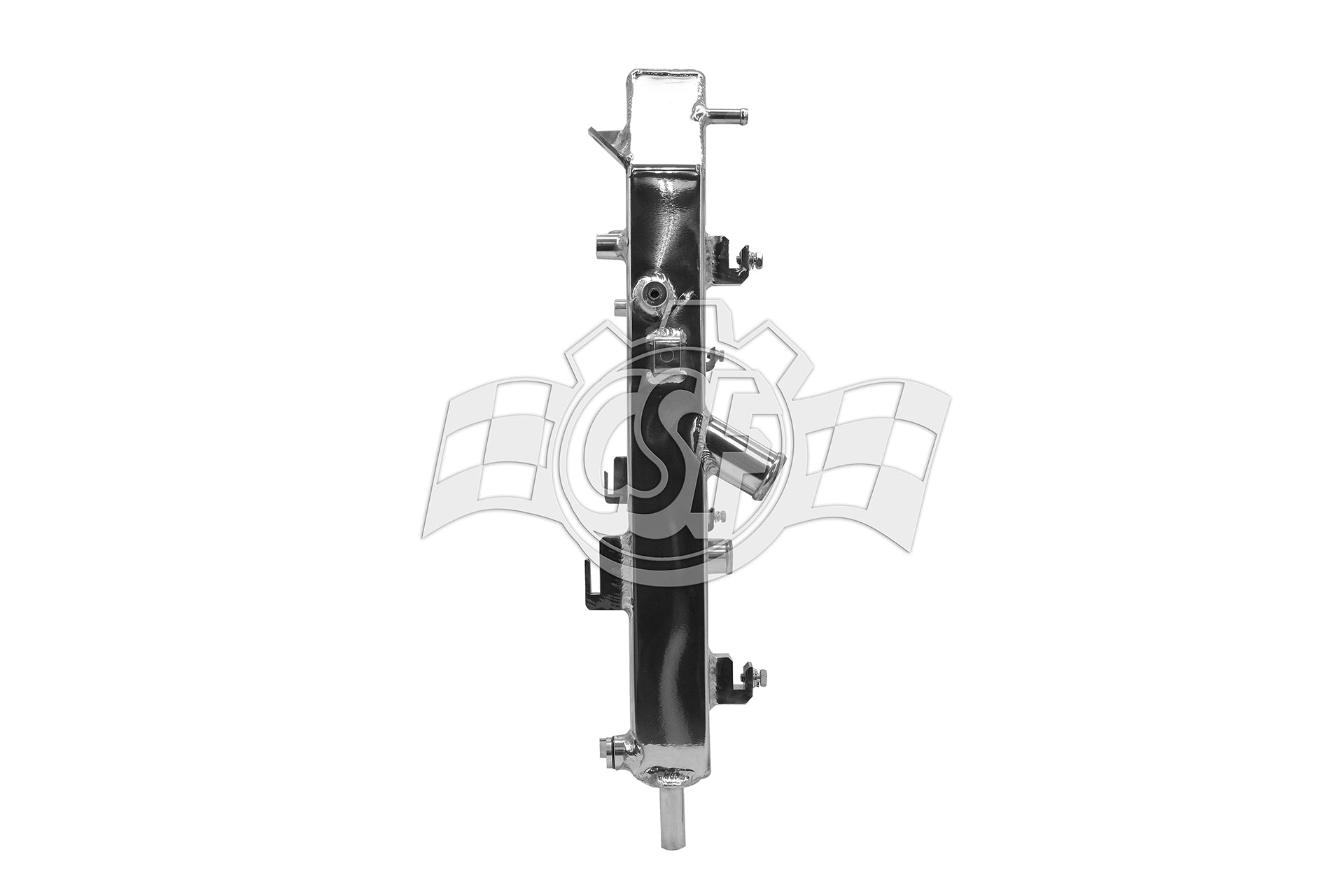

CSF's High-Performance All-Aluminum Radiator for the 06-14 Mazda NC Miata delivers track-proven cooling engineered for both street and motorsports environments. Built with CSF's exclusive B-Tube Technology, this radiator achieves approximately 15% greater heat transfer surface area compared to conventional designs, while utilizing thinner, lighter aluminum for improved efficiency and strength. The dual-core design features ultra-efficient multi-louvered fins precisely aligned to maximize airflow and heat rejection, validated through CSF's wind-tunnel testing.
Key Features:

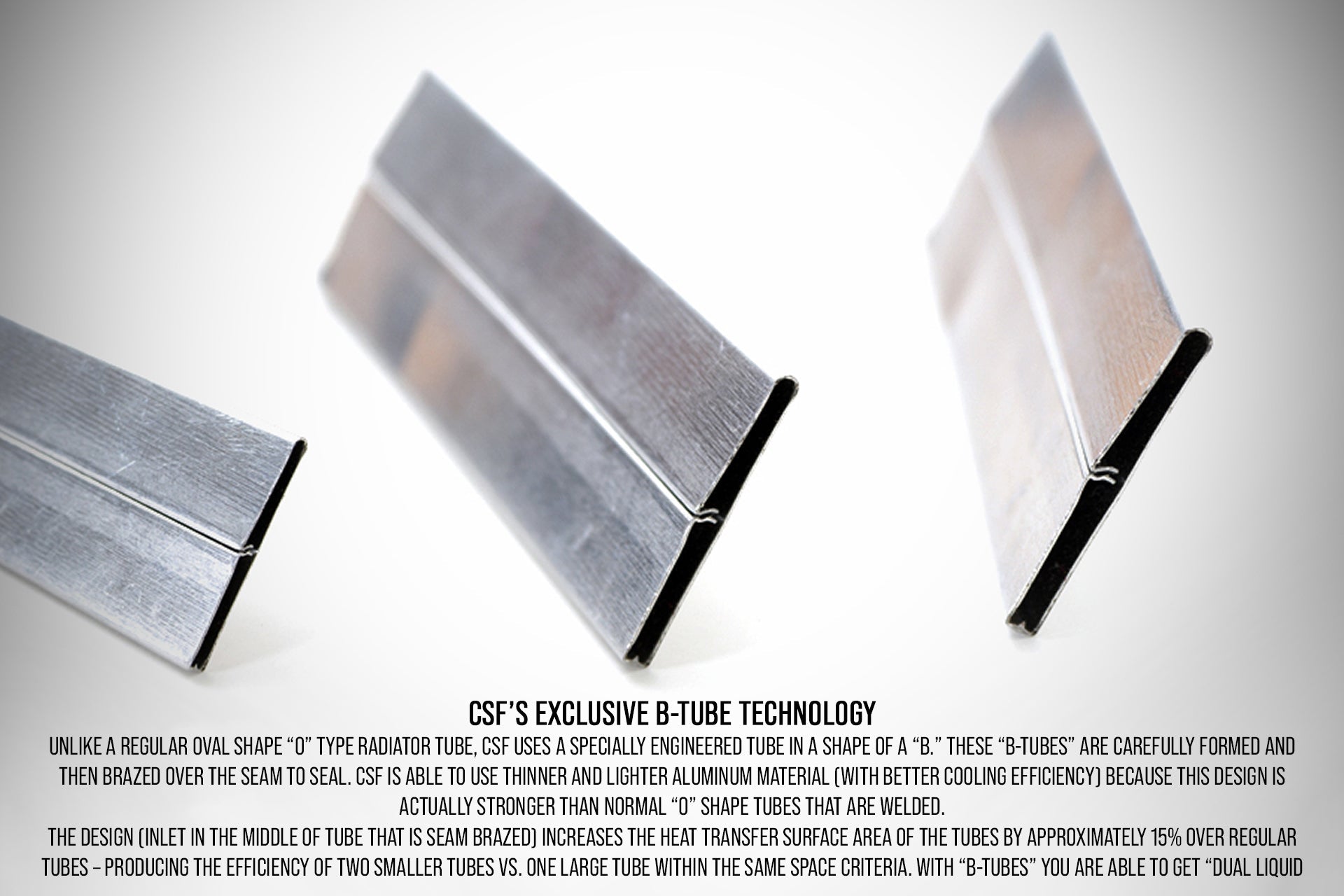

- 2-Row 42mm core featuring exclusive B-Tube Technology with seam-brazed construction

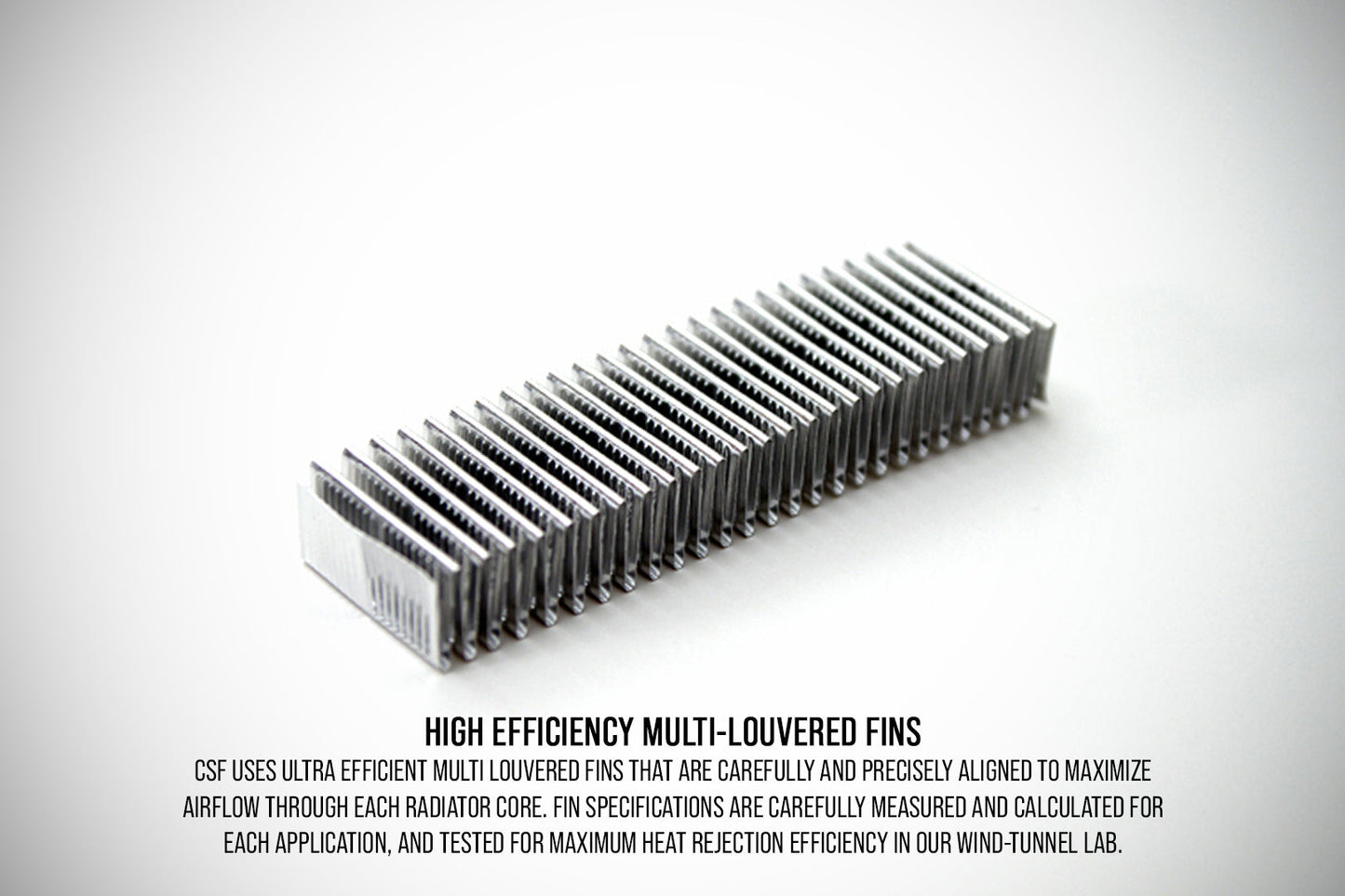

- Ultra-efficient multi-louvered fins with 6.5mm height for maximum surface area contact
- CNC machined quick-connect inlet/outlet connections compatible with OEM and aftermarket hoses
- CNC machined brackets and fittings ensure superb fit and durability
- True drop-in fit requiring zero modifications; accepts all OEM components including quick-connect hoses, AC condenser, and fan shroud
- All-aluminum race-style drain plug with smooth satin finish
Includes:
- High-performance all-aluminum radiator assembly
- CNC machined OE-style brackets
- Quick-connect inlet/outlet fittings
- All attaching hardware for direct installation
Precision cooling for the NC Miata. Maximum heat rejection. Zero installation modifications.
