Further Information
CSF brings over 5 decades of cooling expertise to the J100 LX470 and Land Cruiser platform with a heavy-duty all-aluminum high-performance radiator. Engineered for both street driving and motorsports environments, this radiator delivers superior cooling for stock applications and high-horsepower builds alike.
The radiator features CSF's exclusive B-Tube Technology, a specially engineered tube design that increases heat transfer surface area by approximately 15% compared to conventional oval tubes. These B-tubes are brazed rather than welded, allowing for thinner, lighter aluminum material while maintaining superior strength. Combined with ultra-efficient multi-louvered fins precisely aligned for maximum airflow, this design produces the cooling efficiency of dual smaller tubes within the same footprint.
Key Features:
- 2-Row, 52mm Heavy-Duty Ultra-High-Performance Dual Pass Core with B-Tube Technology

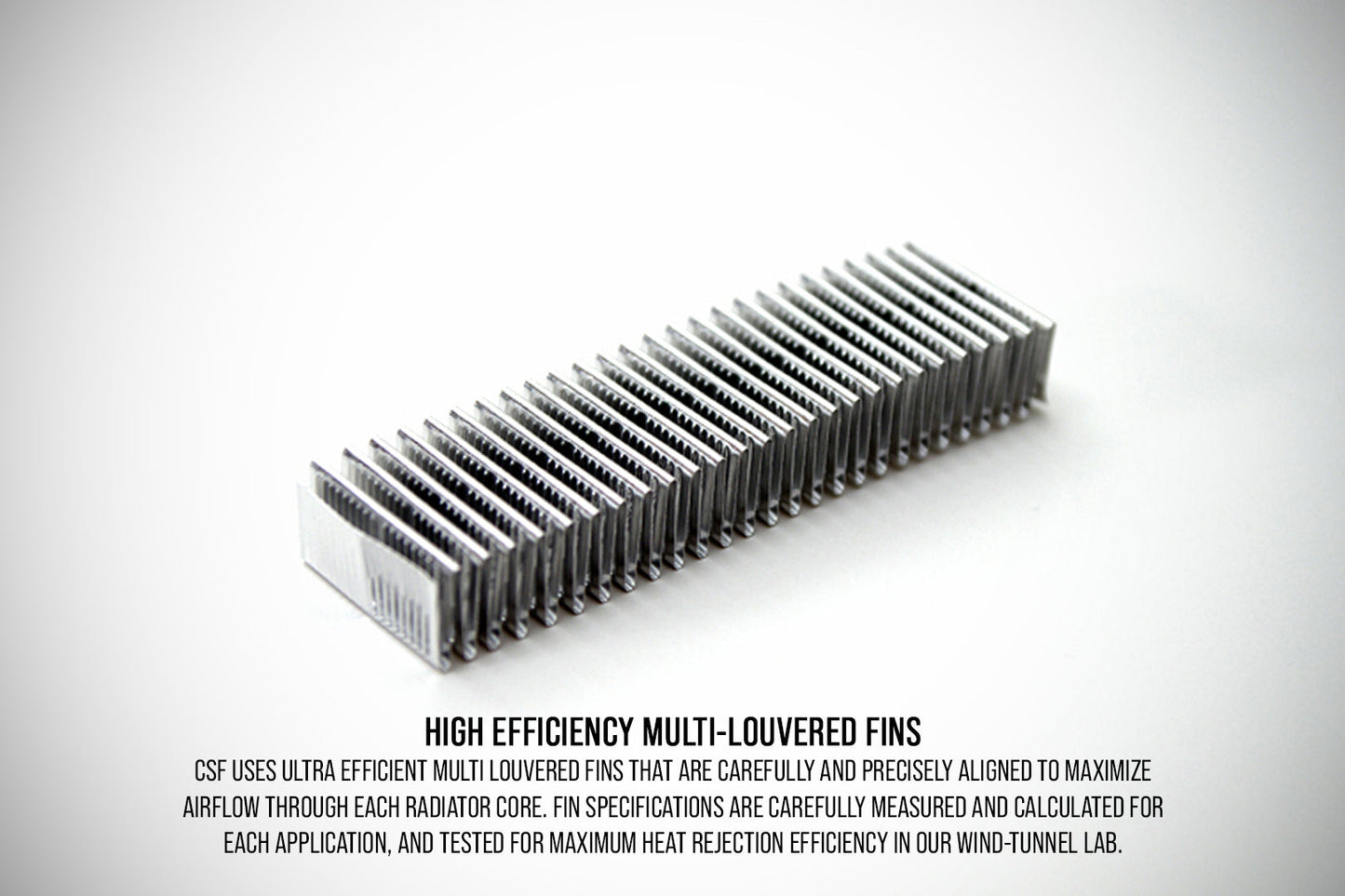

- 6.5mm tall multi-louvered fins engineered for maximum surface area and airflow
- 100% all-aluminum TIG-welded construction with contact-stamped mounting brackets
- True drop-in fit design requiring absolutely no modifications
- OEM style inlet/outlet connections compatible with OEM hoses and aftermarket alternatives
- Individually leak and pressure tested
- Smooth satin finish with CNC-machined and welded brackets for durability
Includes:
- Complete radiator assembly
- OEM-style mounting brackets
- 2-Year Limited Warranty
Factory cooling reliability meets performance capability. Built for the LX470 and Land Cruiser J100.
