Further Information
CSF brings over 5 decades of manufacturing expertise to this high-performance all-aluminum radiator engineered for 12-15 Chevy Camaro V8 and V6 applications. Designed to excel on both street and track, this radiator delivers the added cooling performance required for high horsepower builds and motorsports environments.
The 2-row 42mm core features CSF's exclusive B-Tube Technology, a specially engineered tube design that is stronger than traditional O-shaped tubes while using thinner, lighter aluminum. The seam-brazed B-tubes increase heat transfer surface area by approximately 15% and enable dual liquid laminar flow, delivering the cooling efficiency of two smaller tubes within the same footprint.
Key Features:
- 2-Row 42mm Core (Dual Core) with exclusive B-Tube Technology

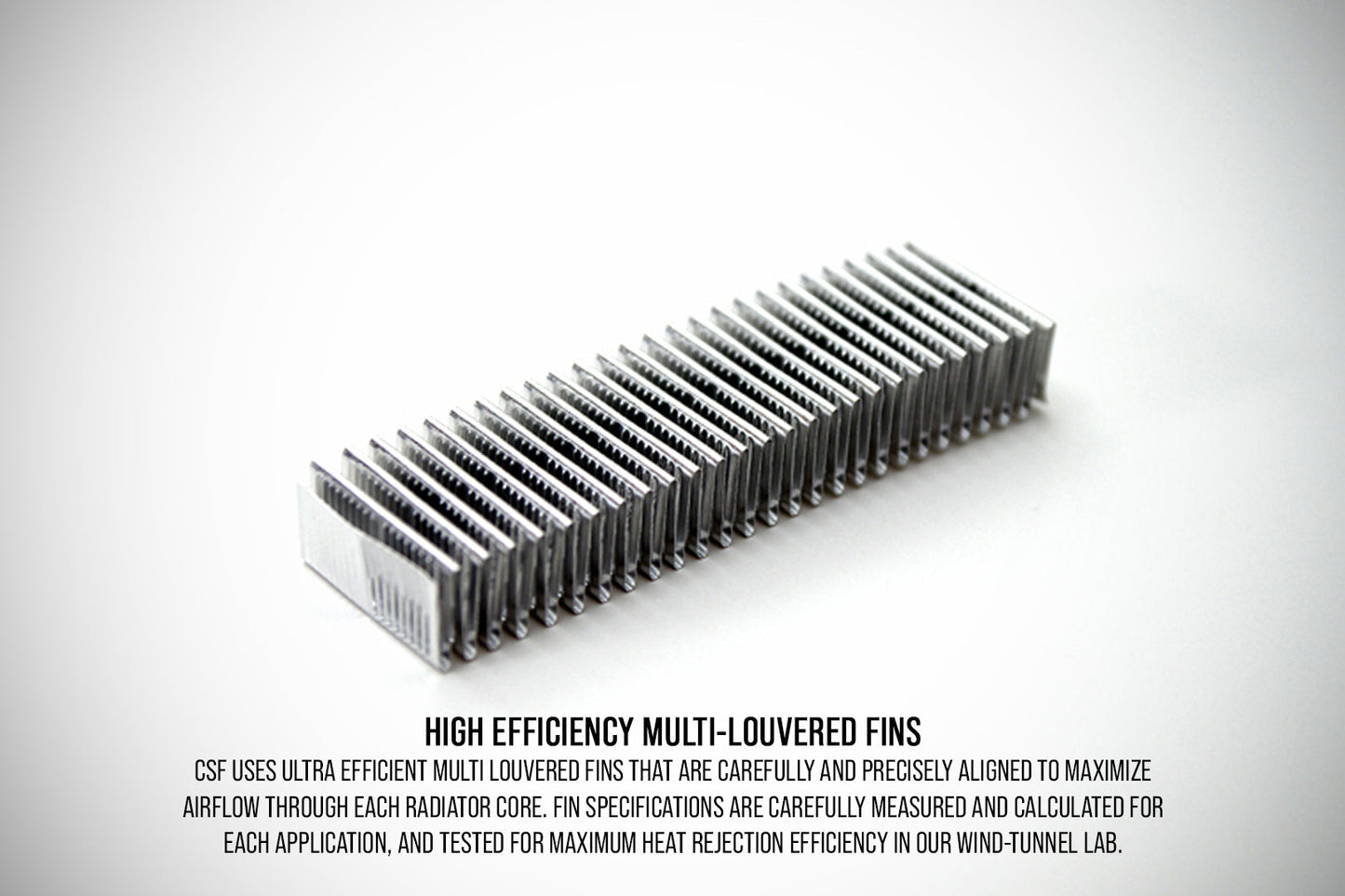

- Ultra-efficient multi-louvered fins with 6.5mm height for maximum surface area and airflow
- CNC machined quick-connect inlet/outlet connections accept OEM hoses and aftermarket alternatives
- CNC machined brackets and fittings for superior durability and precise fit
- All-aluminum race-style drain plug with 1-hour mirror finish hand polish
- True drop-in fit design requiring no modifications; accepts all OEM components
Includes:
- High-performance all-aluminum radiator assembly
- CNC machined mounting brackets and fittings
- Quick-connect inlet/outlet connections compatible with OEM and aftermarket hoses
Engineered cooling performance for your Camaro. Built to last. Built to perform.
