Further Information

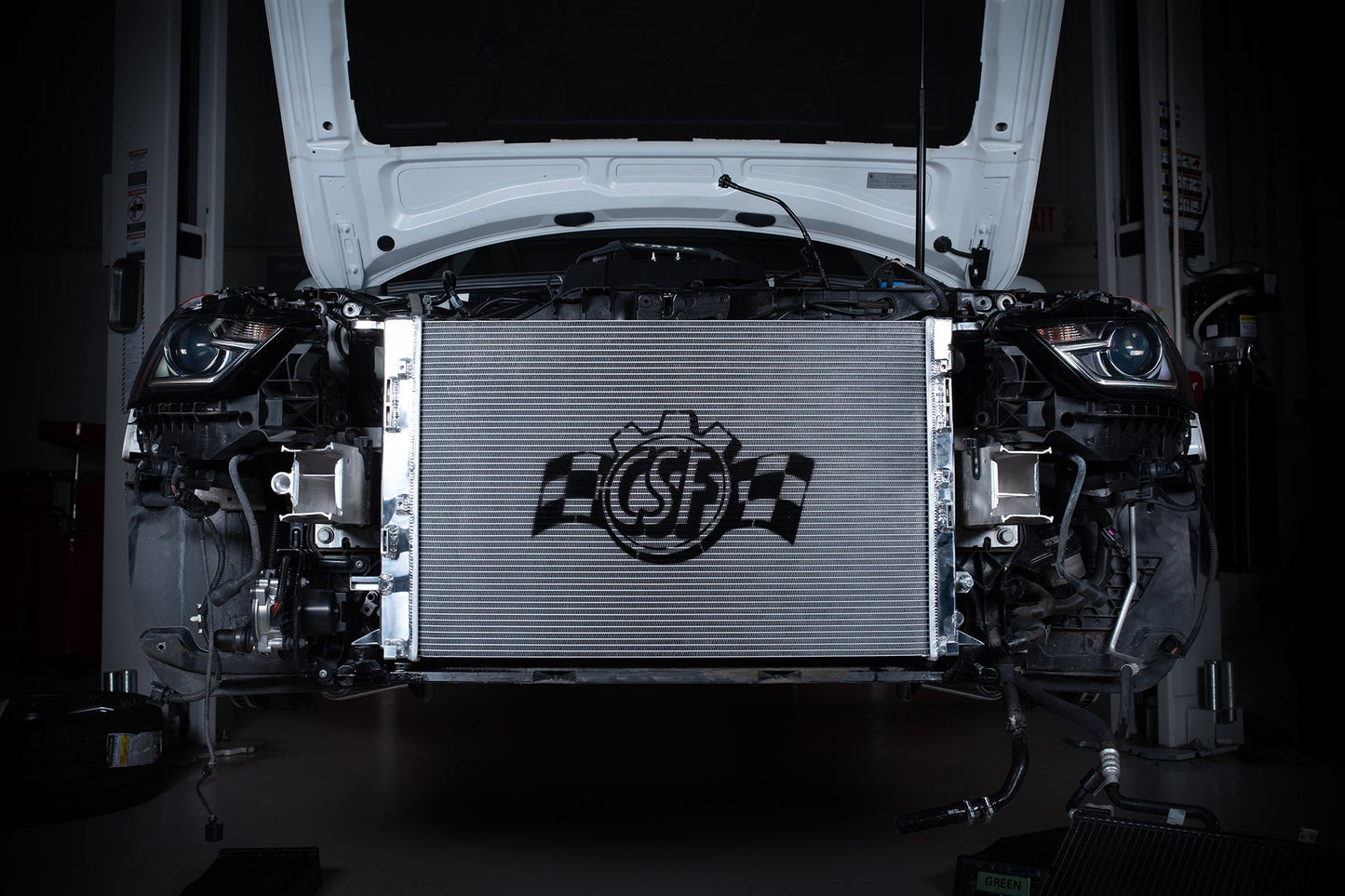

CSF brings over 5 decades of radiator manufacturing expertise to the Audi B8 S4/S5 platform. This high-performance all-aluminum radiator is engineered to deliver superior cooling on both street and track, making it essential for high-horsepower builds and motorsports applications where thermal management is critical.
Featuring CSF's proprietary B-Tube Technology, the radiator core achieves approximately 15% greater heat transfer surface area compared to conventional O-shaped tubes while using thinner, lighter aluminum material. The specially brazed B-tubes create dual liquid laminar flow patterns and deliver the cooling efficiency of two smaller tubes within the same physical footprint, resulting in stronger construction with superior thermal performance.
Key Features:
- 2-Row 42mm dual core with CSF's exclusive B-Tube Technology
- Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum airflow
- CNC machined quick-connect inlet/outlet connections
- CNC machined brackets and fittings for superior durability
- All-aluminum race-style drain plug with smooth satin finish
- Drop-in fit requiring no modifications; accepts all OEM components
- Integrated plate-type transmission oil cooler for automatic transmissions
Includes:
- Complete all-aluminum radiator assembly
- OEM-style CNC machined brackets and fittings
- Quick-connect inlet/outlet connections
- Integrated transmission oil cooler
- Installation hardware
Superior cooling for the B8 S4/S5 and compatible Audi/Porsche platforms.
