The CSF BMW S54 Swap Radiator (#7211) is purpose-built for S54 engine conversions in E36 chassis, solving the unique cooling demands of this increasingly popular swap. Engineered with CSF's industry-leading expertise in high-performance BMW cooling systems, this radiator delivers the robust thermal management required by the naturally-aspirated S54 powerplant while maintaining OEM+ aesthetics and true plug-and-play installation.
Key Features:
- 2-Row 42mm ultra-high-performance core with largest coolant capacity and exceptional heat dissipation
- Exclusive B-Tube Technology increases heat transfer by approximately 15% over regular oval welded tubes

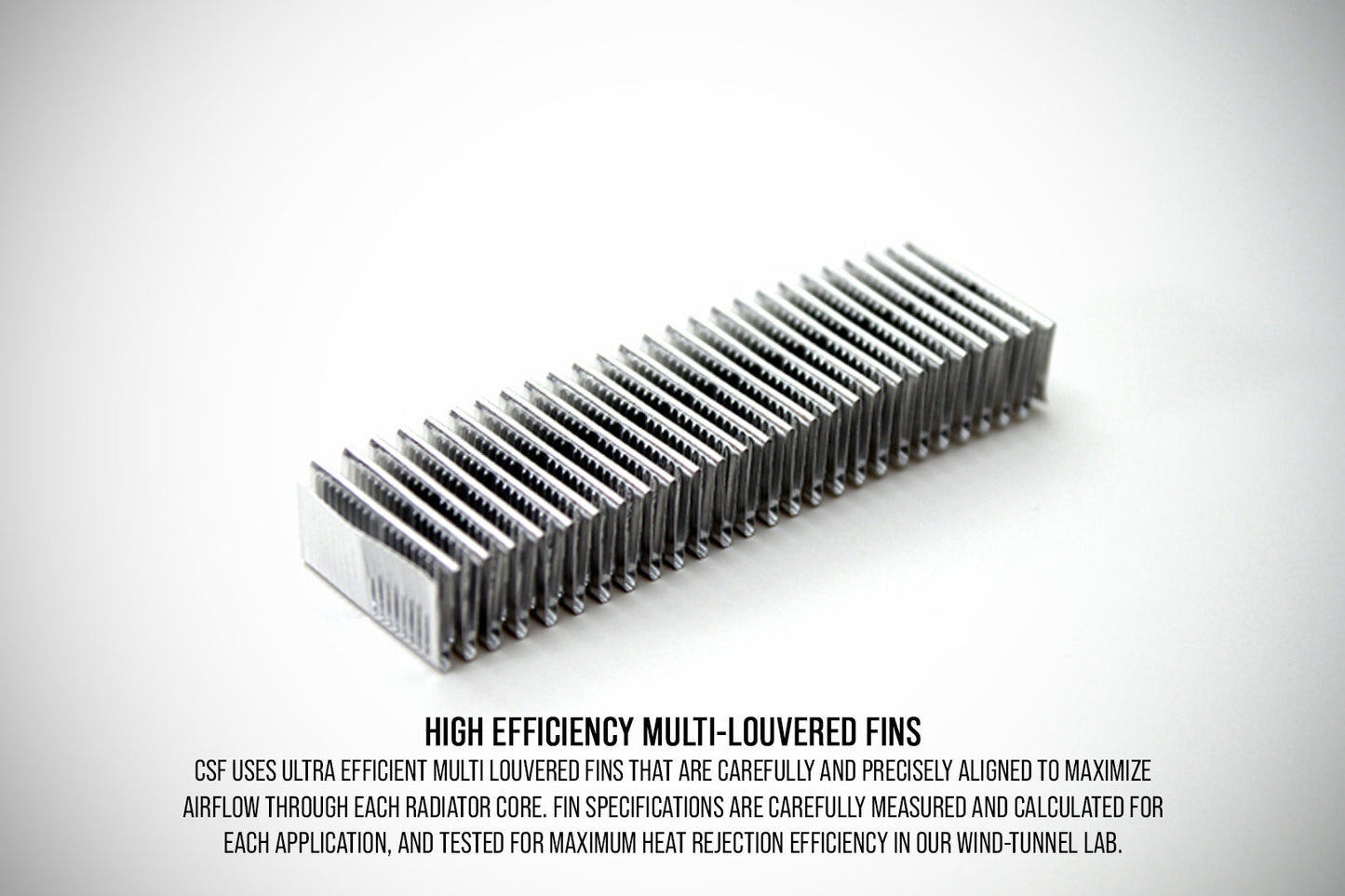

- 6.5mm tall ultra-efficient multi-louvered fins maximize airflow and surface area contact
- 100% aluminum TIG-welded construction with CNC-machined mounting brackets and fittings
- Dual oil cooler mounting bracket provisions fit both CSF #8240 and CSF #8032 race spec coolers
- Custom-designed radiator cover plate with optimized coolant overflow placement for clean appearance
- Includes fan brackets for 16-inch SPAL fan conversion (fan not included)
- OEM style slip-on inlet/outlet connections maintain factory integration
- True plug-and-play drop-in fit installation requires absolutely no modifications
- Individually leak and pressure tested
Includes:
- 2-Row 42mm aluminum radiator core assembly
- Custom oil cooler mounting bracket (fits CSF #8032 and #8240)
- 2 top cover plates (black and satin finish)
- Electric fan conversion brackets for 16-inch SPAL fan
- All CNC-machined mounting hardware
- All-aluminum race style drain plug
Keep your S54 swap cool. Built for the E36 platform.
