Audi TTE700/625 Turbo Flange for RS3/TTRS Carbon Turbo Inlet

The Eventuri Audi RS3/TTRS Turbo Inlet represents a world-first all-carbon inlet elbow engineered around three critical design criteria: volume, flow quality, and temperature management. This precision-engineered component significantly expands the airflow path to your turbo while maintaining structural integrity and thermal efficiency.

Key Features:

• High-temperature prepreg carbon fiber construction with 2mm wall thickness throughout
• Enlarged internal diameters: 103mm inlet vs 72mm stock, 74mm outlet vs 56.4mm stock
• Smooth internal carbon surface minimizes turbulence compared to cast aluminum alternatives
• Silicon coupler with integrated thermal spacer prevents direct turbo heat conduction to carbon elbow
• Heat reflective layer applied at exhaust manifold crossing for radiant heat reduction
• Raw carbon finish with no clearcoat for maximum heat resistance
• CNC machined aircraft-grade aluminum flange, anodized for durability
• Fitment available for RS3 8V Gen 2, 8Y RS3, F3 RSQ3, and TTRS 8S in LHD and RHD configurations

Performance Notes:

• +14-20hp and +30-35ft-lb torque on RS3 with hybrid turbo
• 42% flow rate increase at 24" H2O using stock flange; up to 58% with GTX flange
• Independently dyno tested: 620.8hp on TTRS with TTE700 turbo and Eventuri Stage 3 intake system

Includes:

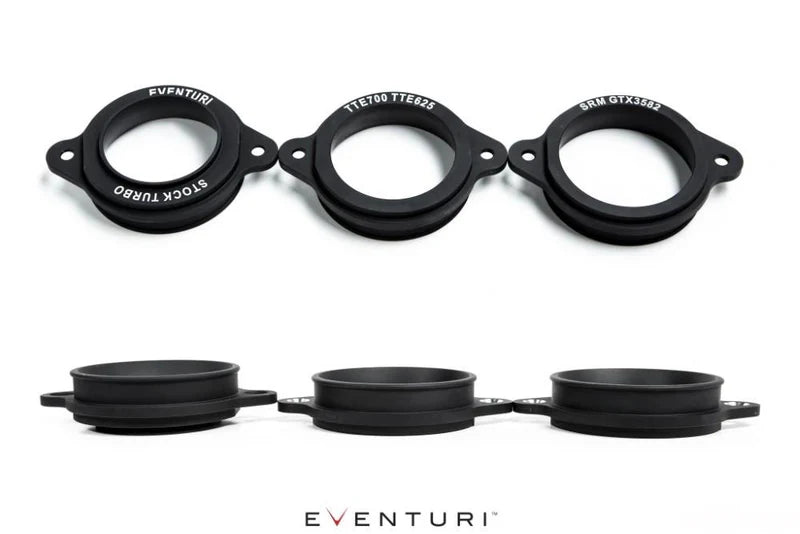

• CNC machined turbo flange for TTE700/625 hybrid turbos
• Silicon coupler with oil-resistant lining and thermal spacer
• Marine grade stainless steel hose clamps
• Installation guide

Engineered for optimal flow, minimal heat soak, maximum performance. TTE700/625 flange included.
