Further Information
The Eventuri FK8 Carbon Turbo Tube V3 is an engineered intake solution designed to maximize turbo efficiency and unlock performance on the Honda FK8 Type R. This updated carbon turbo inlet features significantly increased internal volume and optimized flow characteristics, allowing the turbo to operate with less restriction and spool faster to peak boost levels.
Key Features:
- Inlet diameter increases from 78mm to 88mm, providing 96% greater cross-sectional area versus OEM 63mm tube
- 100% prepreg carbon fiber construction with smooth internal surface for optimal airflow quality
- Silicon thermal spacer and custom coupler isolate the carbon tube from turbo heat, reducing intake air temperature rise
- CNC machined aircraft-grade aluminum flange ensures precise fitment to stock turbo
- Integrated carbon brackets maintain factory mounting points and structural integrity
- One-piece tube design eliminates internal discontinuities and turbulence points
Performance Notes:
- +9hp at peak RPM and +9ft-lb torque over OEM tube on stock FK8
- +15hp and +18ft-lb torque under 4000rpm with tuned builds
- Faster turbo spool-up and earlier peak boost achievement across all power levels
- Greater benefits realized on high-power stage 2+ builds demanding increased airflow

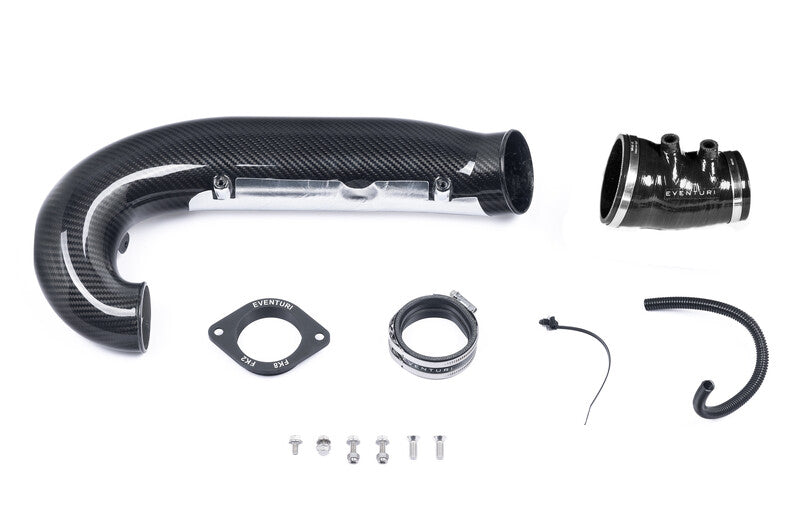

Includes:
- Carbon fiber turbo tube with integrated carbon brackets
- Custom silicon joiner hose at intake side
- CNC machined turbo flange
- Custom silicon coupler at turbo side with thermal spacer
- Installation hardware and guide
More power. More flow. Less heat. The Eventuri difference, engineered for the FK8.
| Manufacturer | Model | Years | Generations | Variant | Engine Code(s) |
|---|---|---|---|---|---|
| Honda | Civic Type R | 2017, 2018, 2019, 2020 | Civic Type R (FK8) | Civic Type R (FK8)-2.0 (306 Hp) | K20C1 |
| Honda | Civic Type R | 2017, 2018, 2019, 2020 | Civic Type R (FK8) | Civic Type R (FK8)-2.0 (320 Hp) | K20C1 |
| Honda | Civic Type R | 2020, 2021 | Civic Type R (FK8, facelift 2020) | Civic Type R (FK8, facelift 2020)-2.0 (320 Hp) | K20C1 |
| Honda | Civic Type R | 2020, 2021 | Civic Type R (FK8, facelift 2020) | Civic Type R (FK8, facelift 2020)-2.0 (306 Hp) | K20C1 |
Honda Civic Type R
Years:
2017, 2018, 2019, 2020
Generations:
Civic Type R (FK8)
Variant:
Civic Type R (FK8)-2.0 (306 Hp)
Engine Codes:
K20C1
Honda Civic Type R
Years:
2017, 2018, 2019, 2020
Generations:
Civic Type R (FK8)
Variant:
Civic Type R (FK8)-2.0 (320 Hp)
Engine Codes:
K20C1
Honda Civic Type R
Years:
2020, 2021
Generations:
Civic Type R (FK8, facelift 2020)
Variant:
Civic Type R (FK8, facelift 2020)-2.0 (320 Hp)
Engine Codes:
K20C1
Honda Civic Type R
Years:
2020, 2021
Generations:
Civic Type R (FK8, facelift 2020)
Variant:
Civic Type R (FK8, facelift 2020)-2.0 (306 Hp)
Engine Codes:
K20C1
