Further Information

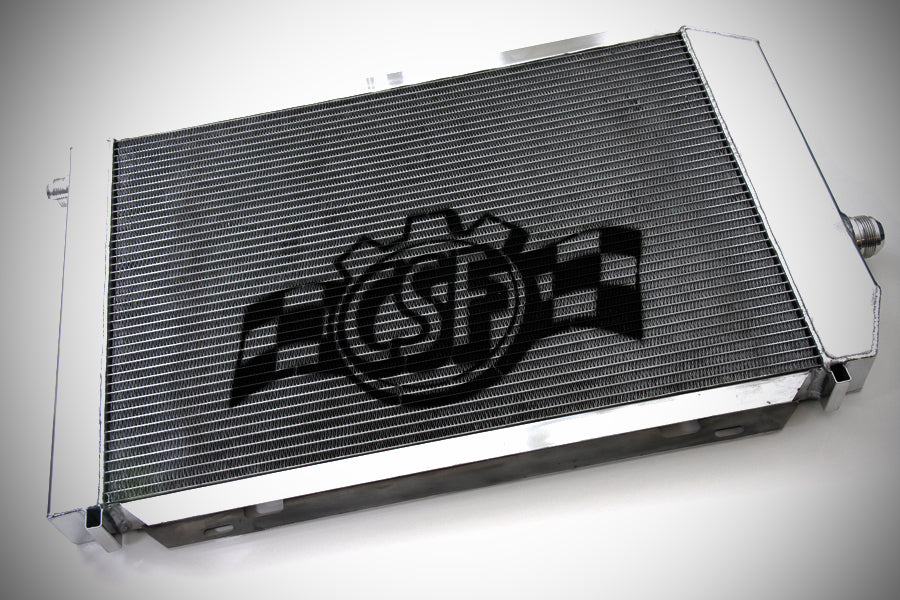

CSF's R-1 Triple-Pass Competition Radiator sets the bar for professional-level cooling in demanding motorsport builds. Lab tested in state-of-the-art facilities including wind tunnel, vibration, thermal cycle, and burst pressure testing, this universal radiator delivers consistent performance across diverse applications and configurations.
Key Features:

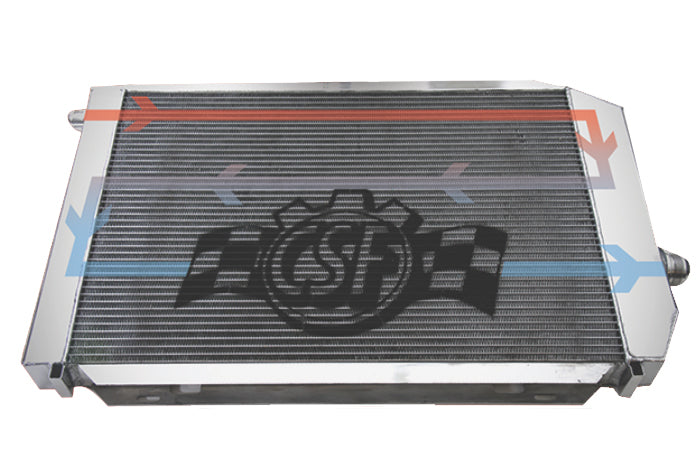

- Triple-Pass flow structure allows coolant to flow across core three times for lowest outlet temperatures

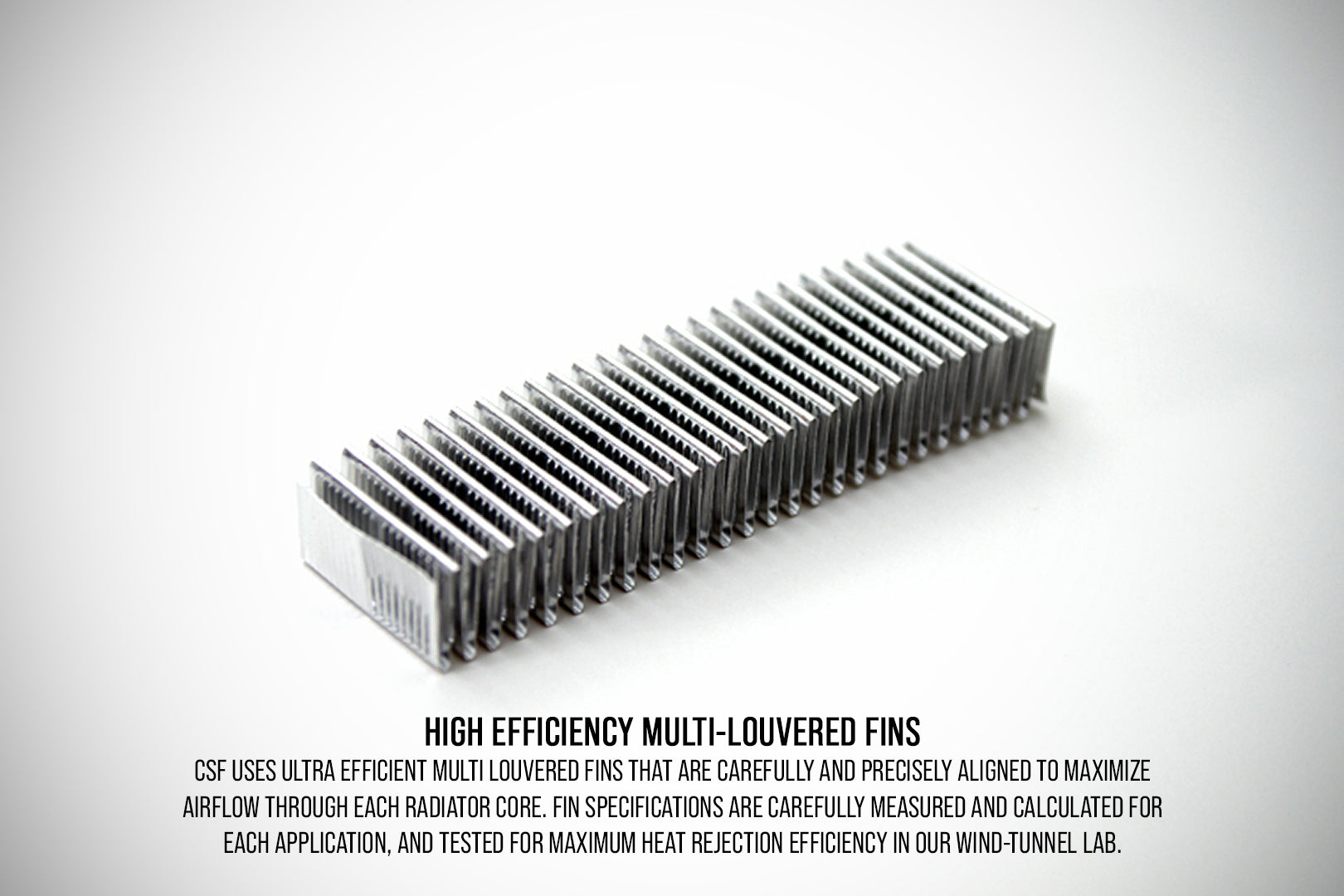

- 2-Row 52mm ultra high-performance core with 8mm tall multi-louvered fins

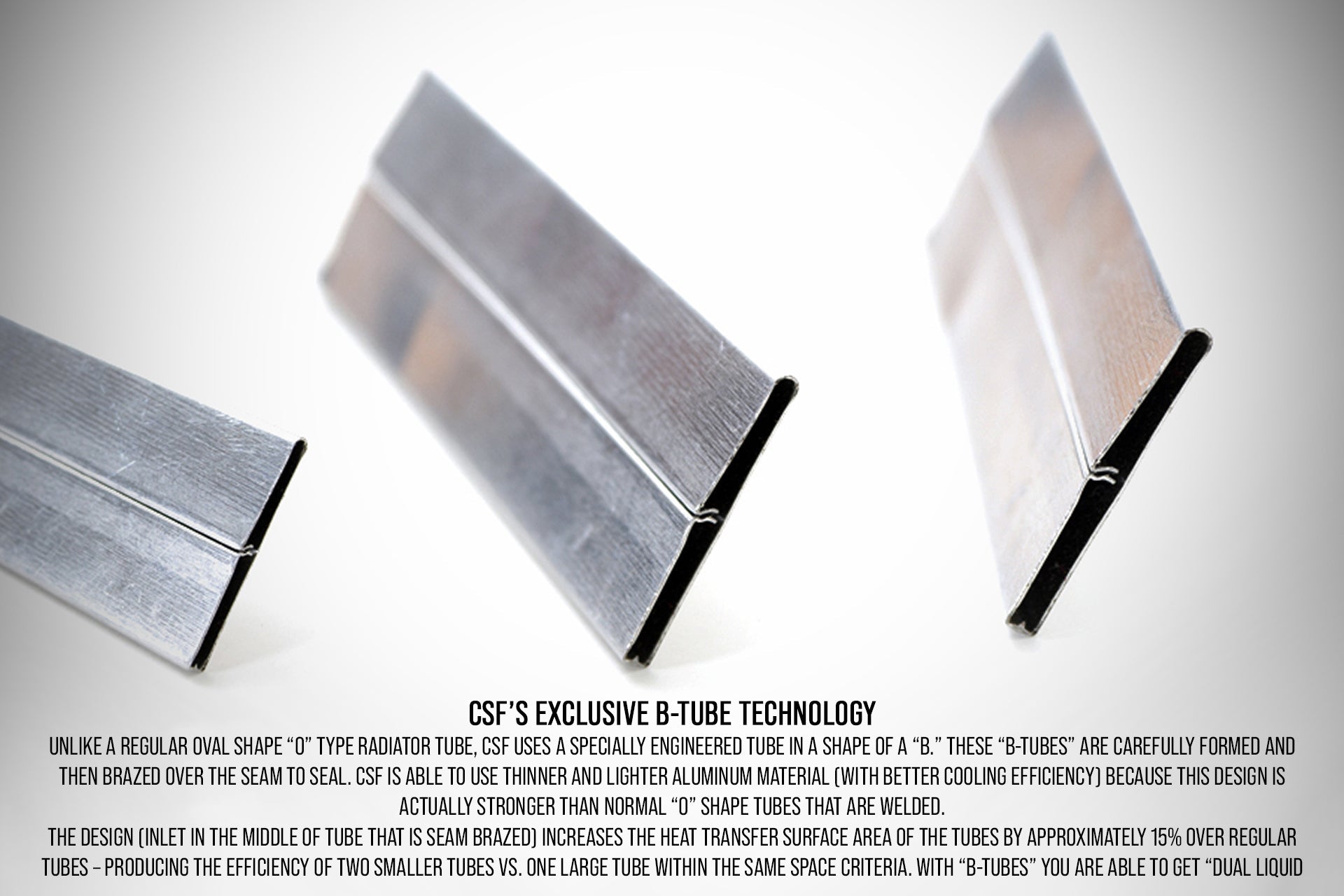

- Exclusive B-Tube Technology increases heat transfer surface area by approximately 15% over standard tubes
- 100% all aluminum TIG-welded construction with CNC machined mounting brackets
- True drop-in fit with no modifications necessary for installation
- Smooth satin finish with black powder-coated core for enhanced thermal rejection
- Perfect for V-Mount turbocharged setups with universal mounting flexibility
Includes:
- Complete radiator assembly with CNC machined brackets
- -AN fittings
- All hardware necessary for installation
Track tested. Professional proven. Built for the demands of motorsport.
| Manufacturer SKU | 8023 |
|---|
