Honda FK2 V3 Oversized Carbon Turbo Tube

Eventuri's updated Carbon Turbo Tube V3 for the FK2 is engineered with significantly larger internal volume to allow the turbo to function with less restriction and deliver measurable power gains. The three-objective design prioritizes volume, flow quality, and temperature management to maximize turbo efficiency and spool response.

This one-piece carbon design features inlet diameters increasing from 78mm to 88mm, a 96% increase in cross-sectional area versus the 63mm OEM tube. The smooth prepreg carbon fiber internal surface minimizes turbulence compared to stock cast aluminum, while the integrated thermal spacer prevents direct contact between the carbon elbow and the hot turbo flange.

Key Features:

• Inlet diameter increases from 78mm to 88mm with 96% larger cross-sectional area than OEM
• 100% prepreg carbon fiber construction with smooth internal surfaces for optimized airflow
• Thermal spacer and silicon coupler reduce heat conduction into the intake charge
• CNC machined aircraft-grade aluminum turbo flange with anodized finish
• Custom silicon joiner hoses engineered for perfect fit and minimal turbulence
• One-piece carbon tube design maintains consistent flow path to turbo

Performance Notes:

• +9hp and +9ft-lb peak torque at maximum RPM
• +15hp and +18ft-lb torque under 4,000 RPM
• Double the power gains versus previous V1 tube generation
• Faster turbo spool-up and earlier peak boost achievement

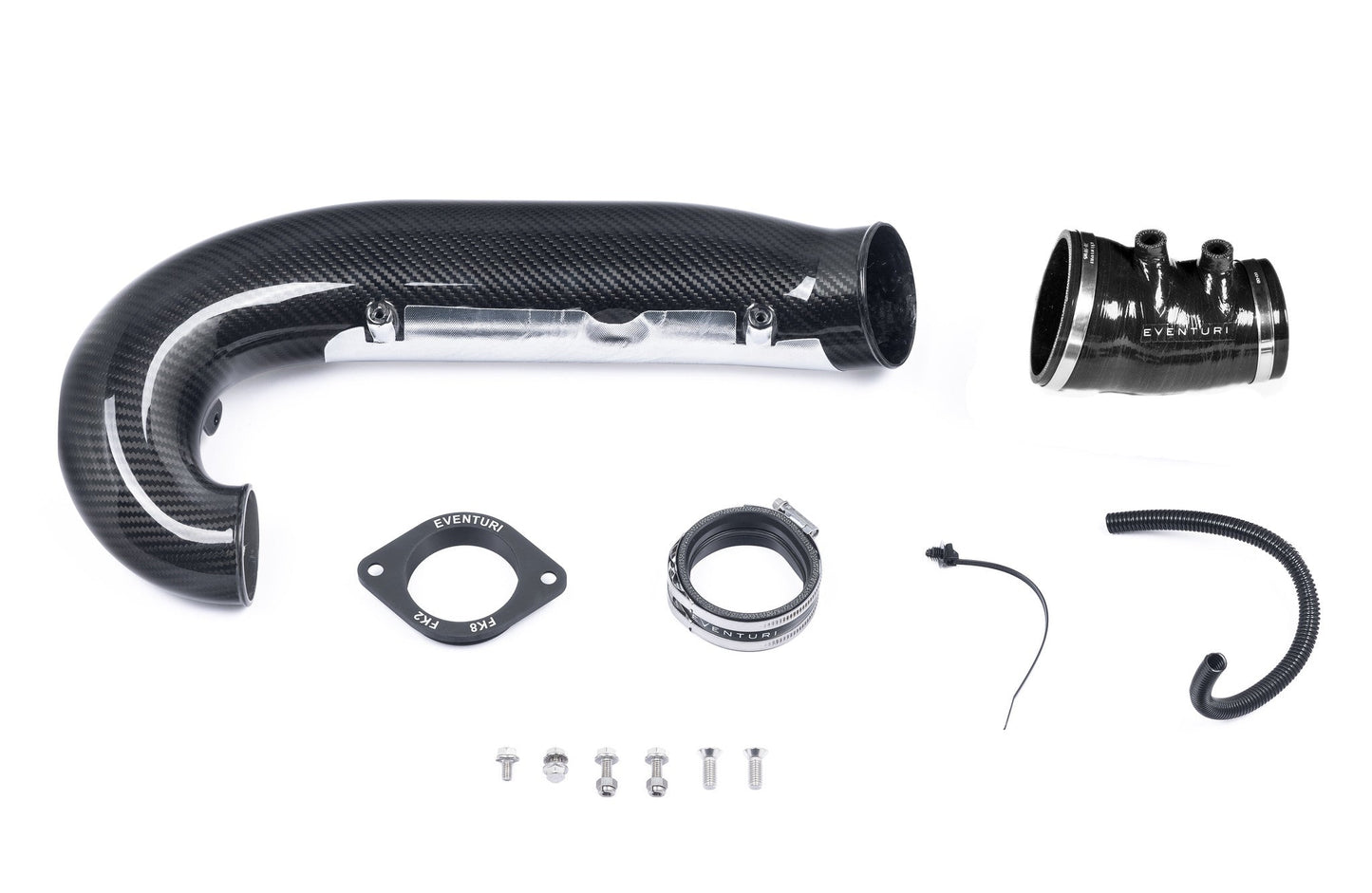

Includes:

• Carbon Fiber Turbo Tube (one-piece design)
• CNC Machined Turbo Flange (aircraft-grade aluminum, anodized)
• Custom Silicon Joiner at intake side
• Custom Silicon Coupler at turbo side with thermal spacer ring
• Laser Cut Stainless Steel Brackets
• Anti-Vibration Mount
• Honda T-Mod kit

More power. More flow. Less heat. Built for the FK2 Type R.
