SKU: SKU: #EVE-TUR-25239094-V3
Orderable
Performance Gain : 9hp, 9ft-lb peak, 15hp 18ft-lb under 4k rpm
Performance Product Details Installation Guide Tags

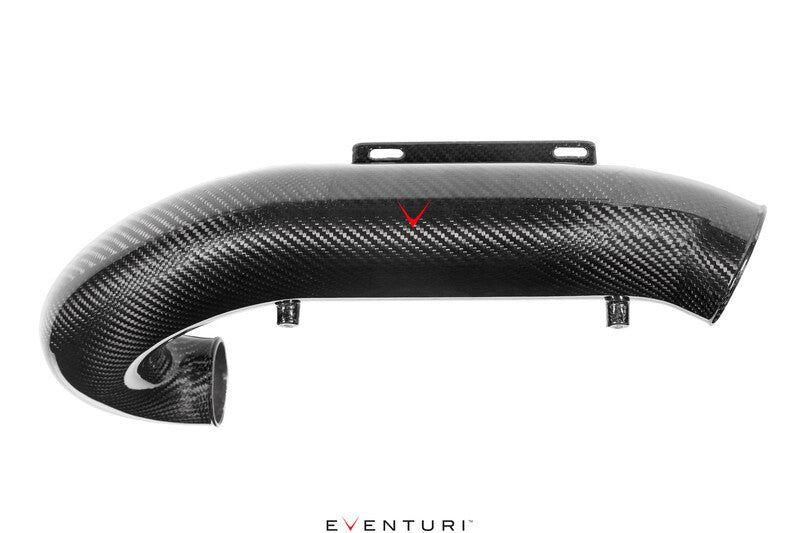

Crafted from Prepreg Carbon Fiber, the Turbo Tube is a one-piece design to maintain a smooth flow path to the turbo. It has an inlet diameter of 78mm internally which matches the MAF tube section and maintains this size for the majority of its length then smoothly tapering down to the stock turbo inlet. The stock turbo tube in comparison only has an internal diameter of 63mm. This difference in size equates to an increase in cross sectional area of over 53%. Furthermore, since it is made from Carbon, it has a much lower weight and lower thermal conductivity across the wall thickness than the stock cast aluminium tube.
96% larger cross-sectional area than OEM with 78-88mm inlet diameter.
100% prepreg carbon fiber construction delivers smooth internal surfaces and minimal heat transfer.
Proven +9hp and +9ft-lb peak torque gains with +15hp under 4k rpm on FK2.

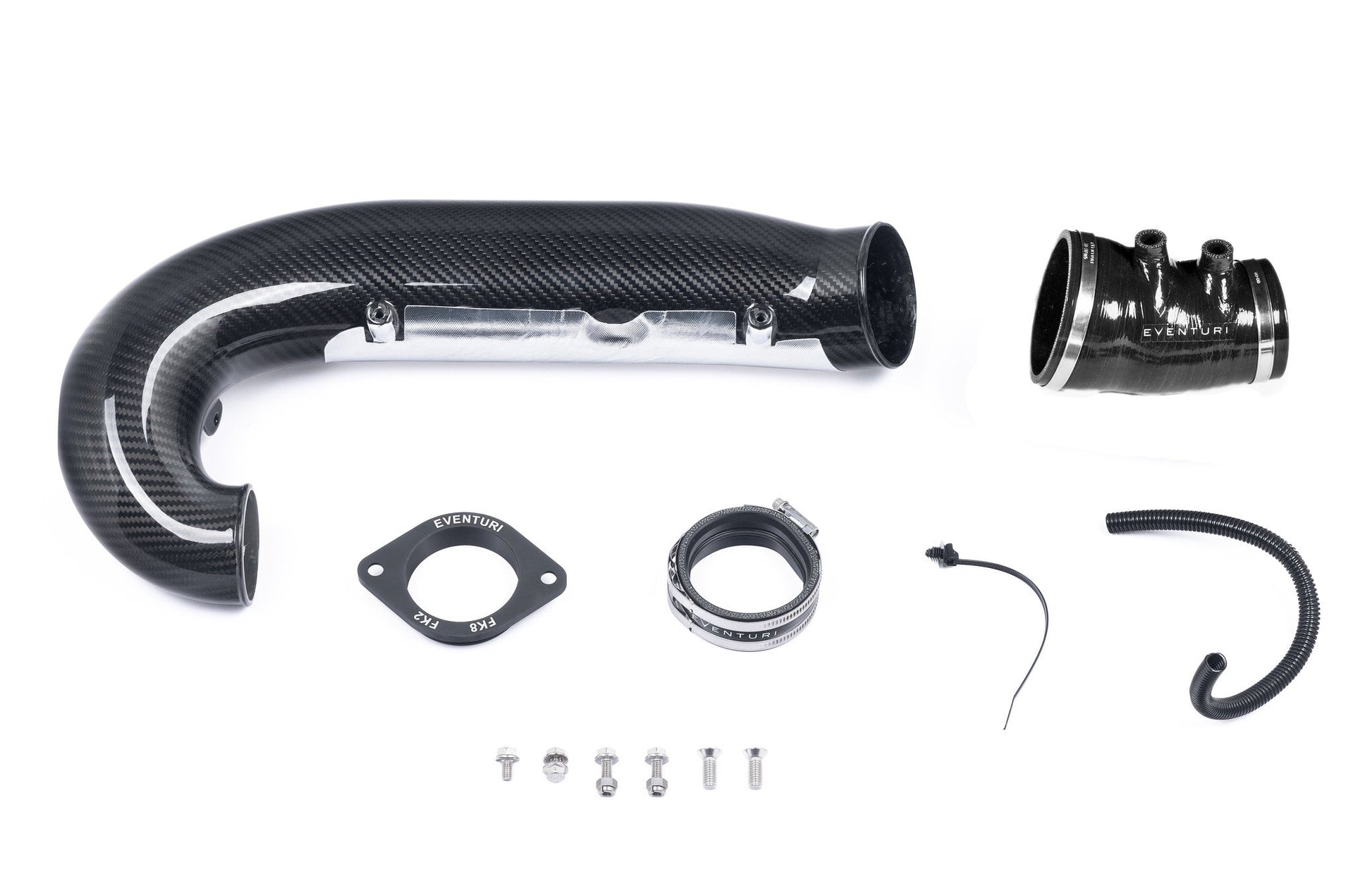

Thermal spacer and silicon coupler isolate carbon from turbo heat for cooler intake temperatures.
Further Information
| Manufacturer | Model | Years | Generations | Variant | Engine Code(s) | Documents |
|---|---|---|---|---|---|---|
| Honda | Civic Type R | 2015, 2016, 2017 | Civic Type R (FK2) | Civic Type R (FK2)-2.0 (310 Hp) | K20C1 |
| Manufacturer SKU | EVE-FK2V3-CF-CHG |
|---|
