Further Information
CSF's transmission cooler for the A90/A91 Supra and BMW G-Series delivers industry-leading heat dissipation through innovative dual-core engineering. Developed with input from leading time attack teams and tuners, this cooler solves transmission temperature overheating and gearbox fatigue that plague modified vehicles during track and competition use.

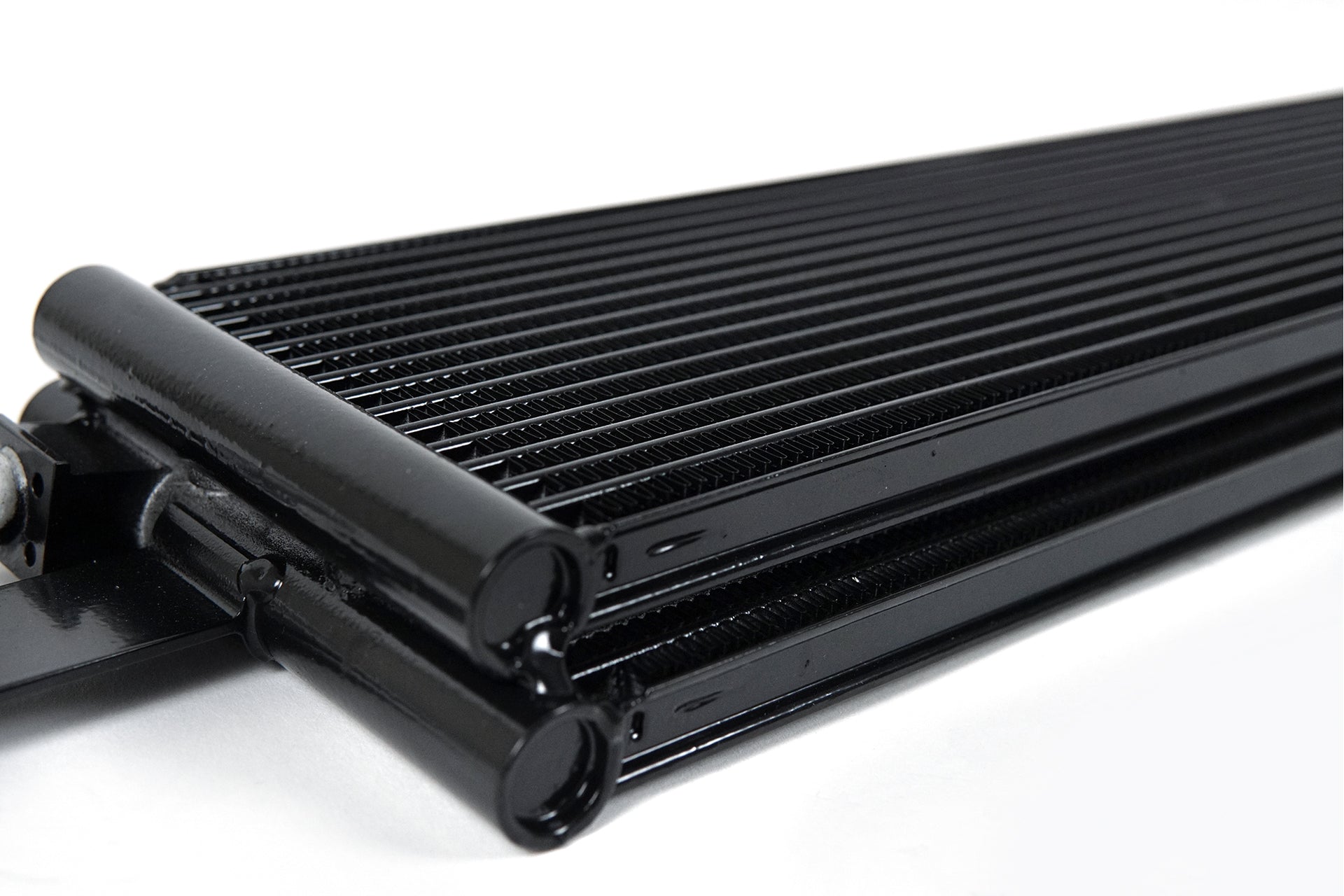

The dual-core design features two stacked 16mm cores with CSF's AC Condenser Technology, utilizing a 1-Row Super-High Pressure 9-Channel Microtube design for optimal oil flow and maximum surface area contact.
Key Features:
- Dual-core design with 240% increase in core volume compared to OEM single-core
- 130% increase in fluid capacity (550ml vs. OEM 240ml)
- Two 16mm stacked cores = 32mm core width without blocking airflow to rest of cooling system
- 5.4mm multi-louvered fins optimized for heat dissipation
- Drop-in fit with OEM-style quick connect inlet/outlet connections
- Compatible with both OEM and CSF High-Performance Heat Exchanger (#8154)
- Utilizes OEM top/bottom rubber seals for optimal airflow
- No modifications required for installation
Performance Notes:
- Installed in Titan Motorsports Drag Race Supra - first A90 to reach 8-second quarter-mile
- Proven in most of the world's fastest A90 Supras and G-Series vehicles
- Eliminates transmission temperature overheating and expansion tank overflow during racing conditions
- Maintains optimal shifting performance during extreme road racing, drag racing, and time attack conditions
Includes:
- Dual-core transmission cooler assembly
- OEM-style quick connect fittings

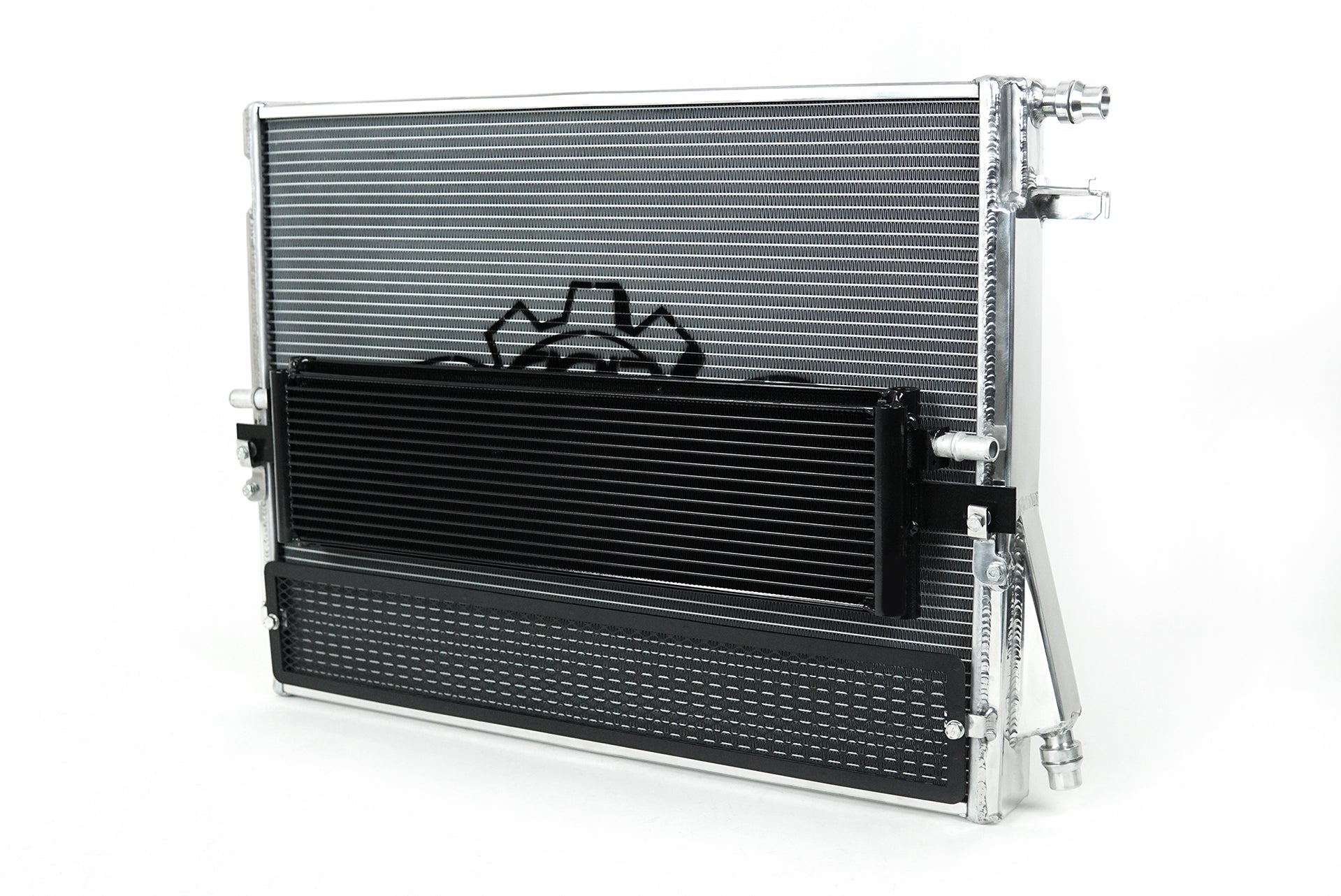

- Rock guard (when paired with CSF #8154 heat exchanger)
- 2-Year Limited Warranty
Maximum cooling. Maximum capacity. Maximum reliability for A90 Supra and BMW G-Series competition.
| Manufacturer SKU | 8183 |
|---|
